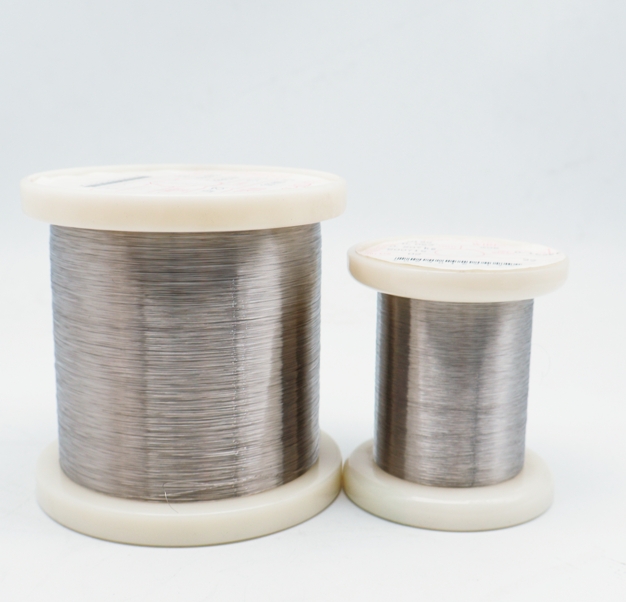

High-Durability Manganese Bronze 6J13 6J8 Wire for Heating and Control Systems

Our High-Durability Manganese Bronze 6J13 6J8 Wire is a top-tier material designed for heating elements, control systems, and precision sensors. With manganese and nickel contents of 13% (6J13) and 8% (6J8), these alloys deliver a powerful combination of strength, corrosion resistance, and electrical stability. They’re perfect for industries like automotive, marine, and industrial automation, where reliability in tough conditions is a must. Available in diameters from 0.01mm to 3mm, our wires are crafted with precision to meet the strictest standards, ensuring consistent quality for your projects.

The wires’ resistivity—32 µΩ·cm (6J13) and 28 µΩ·cm (6J8) at 20°C—makes them ideal for applications requiring stable electrical performance, like heating elements and sensors. Their excellent corrosion resistance handles harsh environments like saltwater or chemical exposure, and they operate reliably up to 450°C (6J13) and 350°C (6J8). We’ve optimized our manufacturing process to deliver wires that are tough, dependable, and ready to perform in demanding applications.

For more details, pls directly contact us.

Manganese Bronze 6J13 and 6J8 are built for durability and performance. The 13% manganese and nickel content in 6J13 gives it superior strength and corrosion resistance, making it perfect for high-temperature sensors and heating elements in industrial settings. The 8% content in 6J8 offers slightly lower resistivity, ideal for cost-effective applications like resistors and sensors in milder environments. Compared to lower-nickel alloys like CuNi8, both provide better strength and corrosion resistance, while being more affordable than high-nickel alloys like Constantan 6J40.

Their thermal conductivity—33 W/mK (6J13) and 38 W/mK (6J8)—ensures efficient heat transfer, critical for heating systems and sensors. With tensile strengths of 360 MPa (6J13) and 340 MPa (6J8), they’re tough enough to handle mechanical stress. Their low temperature coefficient of resistance (TCR) keeps electrical properties stable from -50°C to 450°C (6J13) or 350°C (6J8), making them ideal for medium-temperature applications. Their excellent corrosion resistance shines in harsh environments like marine or industrial settings, ensuring long-term reliability.

Parameter:

Properties Material	Resistivity 200c μΩ.m	Max working temperature (℃)	Tensile strength (Mpa)	Melting point (℃）	Density (g/cm3)	TCR *10-6/℃ (20-600℃）	EMF vs Cu (μV/℃） （0-100℃）
CuNi1	0.03	200	210	1085	8.9	＜100	-8
CuNi2	0.05	200	220	1090	8.9	＜120	-12
CuNi6	0.1	220	250	1095	8.9	＜60	-18
CuNi8	0.12	250	270	1097	8.9	＜57	-22
CuNi10	0.15	250	290	1100	8.9	＜50	-25
CuNi14	0.2	300	310	1115	8.9	＜30	-28
CuNi19	0.25	300	340	1135	8.9	＜25	-32
CuNi23	0.3	300	350	1150	8.9	＜16	-34
CuNi30	0.35	350	400	1170	8.9	＜10	-37
CuNi34	0.4	350	400	1180	8.9	0	-39
CuNi44	0.5	400	420	1200	8.9	＜-6	-43

Size Range
Wire	0.08-7.5mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm
Strip	(0.50-2.5)*(5-180)mm
Rod	8-50mm

For more details, pls directly contact us.

The alloy wire market is thriving, driven by growing demand for durable materials in automotive, marine, and renewable energy sectors. Heating elements and sensors are seeing increased adoption as industries embrace automation, IoT, and energy-efficient technologies. The global sensor market is projected to grow at a CAGR of around 6.8% through 2030, fueled by advancements in smart manufacturing, electric vehicles (EVs), and environmental monitoring systems.

Manganese Bronze 6J13 and 6J8 wires are well-positioned in this landscape. Their high strength and corrosion resistance make them ideal for sensors and heating elements in harsh environments, like marine or industrial automation systems. The rise of EVs and renewable energy, such as wave and tidal systems, is boosting demand for alloys that can handle corrosive conditions and temperature fluctuations. Meanwhile, the push for efficiency in HVAC and industrial control systems is driving the need for reliable materials like 6J13 and 6J8 for heating and sensor applications.

Sustainability is a major trend shaping the industry. Companies are seeking eco-friendly materials to meet environmental regulations, and our 6J13 and 6J8 wires deliver. Produced with energy-efficient processes, they’re fully recyclable, helping you achieve green goals without sacrificing performance. The trend toward miniaturization in electronics is another driver, with industries demanding thinner wires for compact sensor designs. Our ability to produce wires as fine as 0.01mm keeps us ahead of the curve.

Emerging technologies, like IoT-enabled sensors and smart grids, are increasing the demand for durable, cost-effective alloys. These systems require materials that maintain accuracy in tough conditions, and 6J13 and 6J8 are up to the task. As industries continue to innovate, the demand for high-performance alloys like these will keep growing.

Applications of Manganese Bronze 6J13 and 6J8 Wire

Our 6J13 and 6J8 wires are versatile materials with a wide range of applications. Here’s where they make an impact:

• Heating Systems: Used in heating cables for underfloor heating, automotive seat heaters, and industrial heating elements, they ensure efficient heat transfer.

• Precision Sensors: Their corrosion resistance and stable electrical properties make them ideal for temperature and pressure sensors in marine, automotive, and industrial automation systems.

• Control Systems: Used in low-voltage control units and resistors for automotive and industrial equipment, they deliver reliable performance.

• Marine Applications: Their excellent corrosion resistance makes them suitable for sensors and heating elements in ships, offshore platforms, and desalination systems.

• Automotive Systems: From EV battery sensors to climate control units, they provide durability in moderately harsh environments.

• Renewable Energy: In wave and tidal energy systems, they’re used in sensors and heating elements that require strength and corrosion resistance.

Their flexibility also makes them suitable for custom applications, like conductive elements and resistors, where durability and reliability are key.

Comparison Table: Manganese Bronze 6J13 vs. Manganese Bronze 6J8 vs. CuNi8 vs. Constantan 6J40

Property	Manganese Bronze 6J13	Manganese Bronze 6J8	CuNi8	Constantan 6J40
Manganese/Nickel Content (%)	13 (Mn + Ni)	8 (Mn + Ni)	8 (Ni)	40 (Ni)
Resistivity at 20°C (µΩ·cm)	32	28	20	49
Max Operating Temp (°C)	450	350	350	600
Thermal Conductivity (W/mK)	33	38	45	23
Tensile Strength (MPa)	360	340	260	420
Corrosion Resistance	Excellent	Excellent	Very Good	Excellent
Applications	Sensors, heating, control systems	Sensors, heating, resistors	Sensors, resistors	Thermocouples, resistors
Cost Efficiency	High	High	High	Moderate

We’re not just a supplier—we’re a leader in delivering high-quality Manganese Bronze 6J13 and 6J8 Wire. Here’s why we stand out:

• Precision Manufacturing: Our advanced processes produce wires with tight tolerances, from 0.01mm to 3mm in diameter, ensuring consistent performance for your applications.

• Custom Solutions: We offer fully customizable wire sizes and configurations to meet your specific needs, whether for heating systems, sensors, or control systems.

• Rigorous Quality Control: Every batch undergoes extensive testing in our state-of-the-art labs, meeting ASTM and ISO9001 standards for chemical and physical properties.

• Global Expertise, Local Support: With over 40 years of experience, we export to more than 70 countries and provide dedicated support to ensure your projects succeed.

• Eco-Friendly Production: Our energy-efficient processes and recyclable materials help you meet sustainability goals without compromising quality.

• Fast Delivery: Our streamlined production and logistics ensure quick turnaround times, even for custom orders, keeping your projects on schedule.

Compared to others, our focus on precision, customization, and sustainability gives us a clear edge. We deliver products tailored to your needs and built to perform in demanding environments.

Looking Forward

The future of Manganese Bronze 6J13 and 6J8 Wire is promising. As industries like automotive, marine, and renewable energy continue to grow, the demand for corrosion-resistant, high-strength alloys will soar. We’re committed to staying ahead, investing in R&D to enhance our wires’ properties and meet emerging challenges. From developing finer wires for compact sensors to improving corrosion resistance for next-generation applications, we’re always innovating.

Our 6J13 and 6J8 wires are critical components in the systems driving modern industries. From sensors in marine monitoring to heating elements in EVs, they’re small but essential parts of the bigger picture. We’re excited to support our customers in building reliable, sustainable solutions for the future.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs：

1. What is High-Durability Manganese Bronze 6J13 6J8 Wire used for?
   It’s used for heating elements, control systems, and precision sensors in industries like automotive, marine, and industrial automation.

2. Why are Manganese Bronze 6J13 and 6J8 ideal for heating systems?
   Their high strength, excellent corrosion resistance, and stable electrical properties ensure reliable performance in demanding environments.

3. Which industries rely on Manganese Bronze 6J13 and 6J8 Wire?
   Automotive, marine, renewable energy, HVAC, and industrial automation use them for heating, sensors, and control systems.

4. How do Manganese Bronze 6J13 and 6J8 compare to other alloys?
   With 13% (6J13) and 8% (6J8) manganese and nickel, they offer better strength and corrosion resistance than CuNi8, while being more cost-effective than Constantan 6J40.

5. What are the temperature limits for Manganese Bronze 6J13 and 6J8 Wire?
   6J13 operates from -50°C to 450°C; 6J8 up to 350°C, suitable for medium-temperature applications.

6. Are Manganese Bronze 6J13 and 6J8 resistant to corrosion?
   Yes, both provide excellent corrosion resistance, especially in marine and industrial environments with moisture or chemicals.

7. Can Manganese Bronze 6J13 and 6J8 Wire be customized for specific projects?
   We offer customizable wire diameters, from 0.01mm to 3mm, tailored to meet your project requirements.

8. What’s the lifespan of Manganese Bronze 6J13 and 6J8 in heating systems?
   With proper use, they deliver consistent performance for years in moderately harsh environments.
