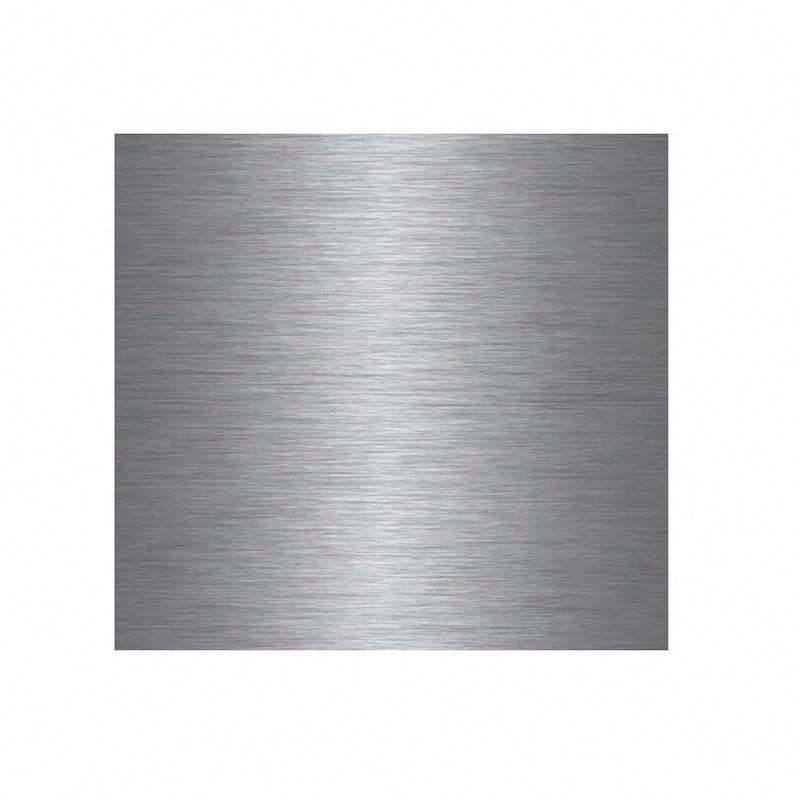

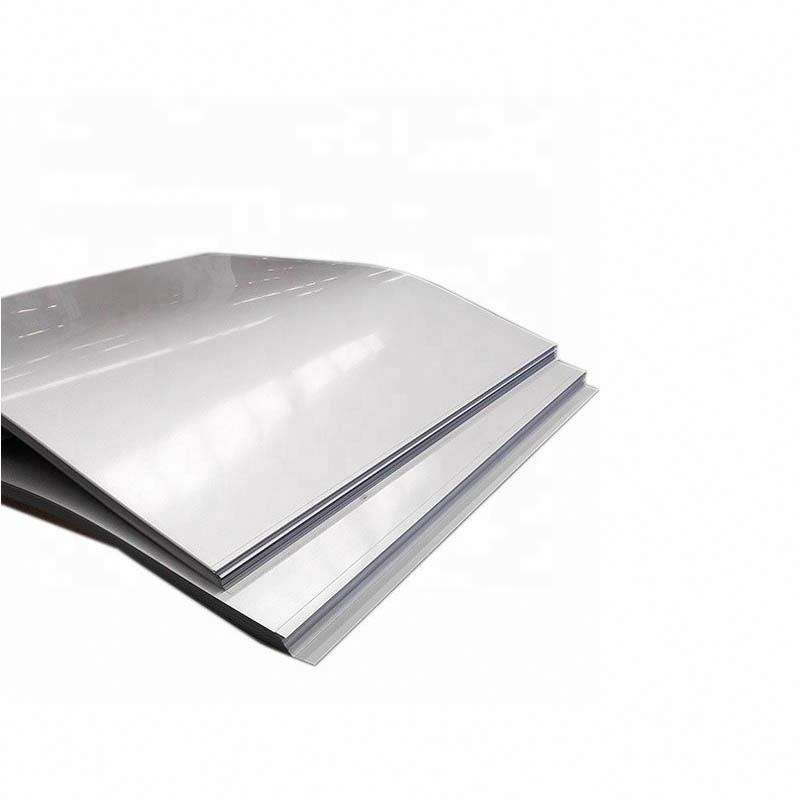

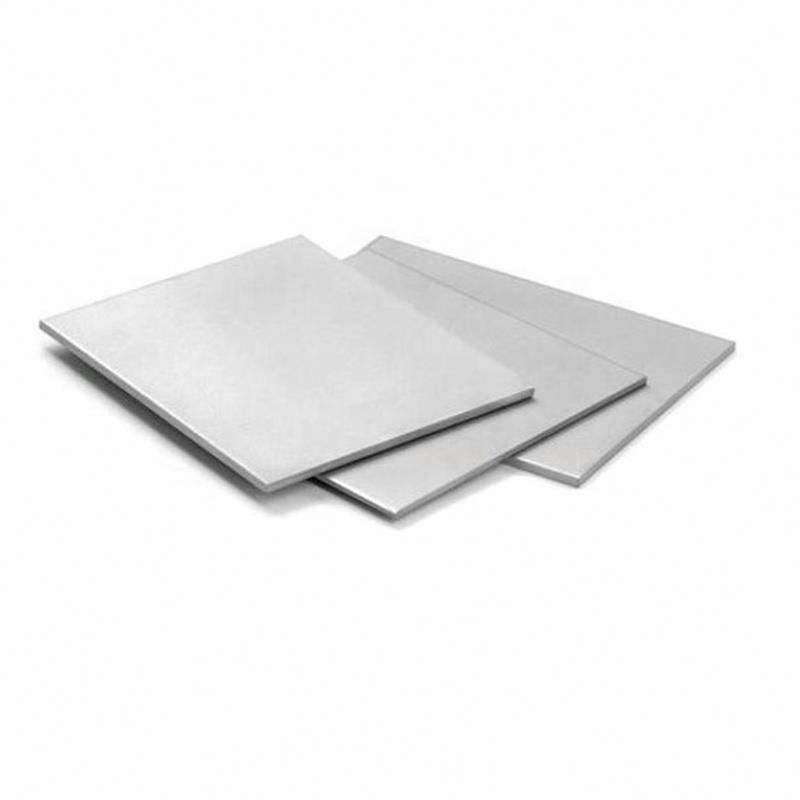

Hastelloy B-3 Plate for Acid Production Unit Durability
Our Hastelloy B-3 plates are the top pick for acid production unit durability. Made from a nickel-molybdenum alloy, these plates are engineered to shrug off corrosion from hydrochloric acid and other reducing acids like sulfuric, acetic, and formic. They’re perfect for reactors, tanks, and heat exchangers in acid plants. Easy to weld, cut, and form, they keep their corrosion resistance even after fabrication. Built to last, our plates ensure your equipment stays tough in the harshest chemical environments.
The chemical processing industry is on fire, with acid production units playing a starring role. Global demand for corrosion-resistant materials is soaring as plants tackle tougher chemicals and stricter regulations. The pharmaceutical and petrochemical sectors are growing, especially in emerging markets, driving the need for durable equipment. Trends show a shift toward high-performance alloys that cut downtime and maintenance costs. Our Hastelloy B-3 plates are right in the sweet spot, offering long-lasting performance in a market that values reliability and efficiency.
Parameter | Hastelloy B-3 Plates | Other Nickel Alloys | Stainless Steel |
|---|---|---|---|
Hydrochloric Acid Resistance | Exceptional at all concentrations and temps | Good, but less effective at high concentrations | Poor, corrodes rapidly in HCl |
Temperature Resilience | Excellent under high temperatures | Decent, varies by alloy, some weaken at extreme heat | Limited, degrades in high-heat conditions |
Fabrication Ease | Easy to weld, cut, and form | Moderate, some alloys harder to work with | Easy, but corrosion limits applications |
Reducing Acid Resistance | Outstanding (sulfuric, acetic, formic) | Moderate, varies by alloy | Poor, fails in reducing environments |
Oxidizing Media Resistance | Not suited for oxidizing conditions | Varies, some handle oxidizing media | Better in oxidizing, weak in reducing acids |
Durability | Extremely durable, long service life | Moderate to high, depends on alloy | Moderate, shorter lifespan in harsh settings |
Chemical Versatility | Excellent for reducing acids | Good, but less versatile | Limited, fails in aggressive chemicals |
Cost-Effectiveness | Higher upfront cost, long-term savings | Varies, some cheaper but less durable | Low cost, but frequent replacements needed |
Our Hastelloy B-3 plates are ready for the toughest challenges:
Chemical Processing: Ideal for reactors and tanks in hydrochloric and sulfuric acid production.
Pharmaceutical: Keeps corrosive chemical processes safe and pure.
Petrochemical: Perfect for equipment handling reducing acids.
Waste Treatment: Tough enough for acidic waste streams in treatment systems.
Specialty Chemicals: Reliable for producing acetic and formic acids.
These plates are your solution for systems where durability is everything.
Specification
item | HC-276 | C-22 | C-4 | B2 | B3 | N |
C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
Ni | rest | rest | rest | rest | ≤65 | rest |
Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
B | -- | -- | -- | -- | -- | ≤0.01 |
W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Shape | Size (mm) |
Wire | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Custom made |
Sheet/Plate | Custom made |
For more details, pls directly contact us.
Our Hastelloy B-3 plates stand out because we’re all about quality and precision. We manufacture to strict ASTM standards, ensuring unbeatable corrosion resistance and strength. Every plate goes through tough in-house testing to handle the harshest acid plant conditions. Our large inventory and quick delivery keep your projects on track, and we offer custom sizes to fit your exact needs. Our expert team supports you from start to finish. While others might skimp, we deliver plates that last, saving you downtime and replacement costs.
Conclusion
For acid production unit durability, our Hastelloy B-3 plates are the way to go. They combine top-tier corrosion resistance, high-temperature strength, and easy fabrication to meet the demands of modern chemical plants. With industry trends leaning toward durable, low-maintenance materials, our plates are built to exceed expectations. Trust us for quality, reliability, and a partner who gets your industry’s needs.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
Why use Hastelloy B-3 plates for acid production units?
They’re built to resist corrosion from hydrochloric acid and other reducing acids, making them ideal for durable plant equipment.What industries rely on Hastelloy B-3 plates?
Chemical processing, pharmaceutical, petrochemical industry, and waste treatment industries depend on their toughness.Can Hastelloy B-3 plates handle high temperatures?
Yep, they stay strong and reliable even under extreme heat.Are Hastelloy B-3 plates easy to fabricate?
Totally, they’re easy to weld, cut, and form without losing corrosion resistance.What acids can Hastelloy B-3 plates resist?
They handle hydrochloric, sulfuric, acetic, and formic acids like pros.How do Hastelloy B-3 plates perform in oxidizing conditions?
They’re best for reducing environments, as oxidizing media can speed up corrosion.What’s the lifespan of Hastelloy B-3 plates in acid plants?
With proper care, they can last decades, outlasting most other materials.Are Hastelloy B-3 plates cost-effective?
Their durability and low maintenance make them a smart choice for long-term savings.
