Our Corrosion-Resistant Monel K500 Wire for Chemical Industry Springs is built to take on the toughest challenges in chemical processing. From corrosive acids to high-stress environments, this wire delivers the strength, durability, and reliability you need for springs that keep your operations running smoothly. Let’s dive into what makes our Monel K500 wire a top choice, explore its applications, and check out the trends driving its demand in the chemical industry.

For more details, pls directly contact us.

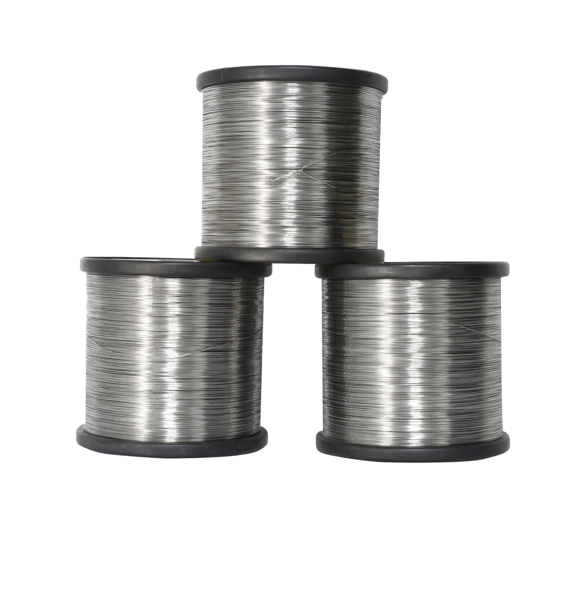

Our Monel K500 Spring Wire is crafted from a nickel-copper alloy, blending about 66% nickel with 30% copper, plus aluminum and titanium to boost its strength and corrosion resistance. This alloy is a powerhouse, offering better strength than Monel 400 while maintaining excellent resistance to harsh chemicals like acids, alkalis, and seawater. It’s the go-to material for springs that need to perform in the brutal conditions of chemical processing plants.

This wire thrives in tough environments. It handles temperatures up to 1000°F (538°C), resists stress-corrosion cracking and pitting, and stays non-magnetic, which is critical for sensitive equipment like sensors. We offer full customization—diameters, tensile strengths, coil designs, and finishes—so you get springs that fit your chemical industry project perfectly, whether it’s for a reactor valve or a high-pressure pump.

Monel 400 and Monel K-500 Spring Wire Parameter Table

Parameter	Monel 400	Monel K-500
Material	Nickel-Copper alloy (solid-solution strengthened, hardenable only by cold working)	Nickel-Copper alloy (age-hardenable, with added aluminum and titanium for enhanced strength and hardness)
Specifications	AMS 7233, ASTM B164, UNS N04400, QQ-N-281	AMS 4676, ASTM B865, UNS N05500, BS 3075 NA 18, NACE MR0175, QQ-N-286
Chemical Composition	Ni: ≥63% Cu: 28-34% Fe: ≤2.5% Mn: ≤2.0% C: ≤0.3% Si: ≤0.5% S: ≤0.024%	Ni: 63-70% Cu: 27-33% Al: 2.3-3.15% Ti: 0.35-0.85% Fe: ≤2.0% Mn: ≤1.5% C: ≤0.25% Si: ≤0.5% S: ≤0.01%
Tensile Strength	Annealed: 70-110 ksi (480-760 MPa) Spring Temper: 145-180 ksi (1000-1240 MPa)	Annealed: 80-110 ksi (550-760 MPa) Spring Temper + Aged: 145-200 ksi (1000-1380 MPa)
Density	8.80 g/cm³ (0.318 lb/in³)	8.44 g/cm³ (0.305 lb/in³)
Max Operating Temperature	815°C (1500°F), recommended for springs ≤450°F (232°C)	450°F (232°C), suitable for -184°C to 232°C (-300°F to 450°F)
Hardness	Rockwell C23-32 (spring temper)	Rockwell C30-40 (spring temper + aged)
Wire Diameter	0.10 mm - 14 mm	0.10 mm - 14 mm
Applications	Marine engineering (fasteners, valves, pumps, propeller shafts), chemical processing equipment, electronic components, petroleum distillation towers	Marine engineering (pump shafts, fasteners, propeller shafts), oil and gas industry, chemical processing, medical equipment, aerospace

For more details, pls directly contact us.

We’ve engineered our Monel K500 Spring Wire to be a game-changer for chemical industry applications. Here’s why it stands out:

• Unmatched Corrosion Resistance: Acids, alkalis, and other harsh chemicals are no match for our wire, ensuring your springs stay corrosion-free in extreme conditions.

• High Strength and Toughness: With tensile strengths of 100-160 ksi, our wire handles heavy loads and stress without losing its edge.

• Custom-Built for You: From precision springs for instrumentation to heavy-duty ones for reactors, we tailor every detail to your specs.

• Non-Magnetic Properties: Perfect for sensitive chemical plant equipment like sensors where magnetic interference could cause issues.

• Extreme Durability: From high-heat reactors to corrosive chemical environments, our wire delivers reliable performance every time.

Compared to other companies, we’re all about precision and reliability. While others might offer similar alloys, we stand out with tighter quality control, faster delivery, and hands-on technical support. Our team works with you to ensure your springs are spot-on, whether you’re building a prototype or scaling up for production.

Applications of Monel K500 Spring Wire

Our Monel K500 Spring Wire is hard at work across a range of chemical industry applications and beyond. Here’s where it’s making a difference:

• Chemical Reactors: Springs in reactors face constant exposure to aggressive chemicals and high temperatures. Our wire keeps them running strong.

• Valves and Pumps: Our springs ensure reliable performance in valves and pumps handling corrosive fluids under high pressure.

• Processing Equipment: From mixers to separators, our wire provides durability and precision in critical chemical processing systems.

• Oil and Gas: Springs in refineries and offshore rigs benefit from our wire’s corrosion resistance and strength in harsh environments.

• Marine Applications: Our wire’s resistance to seawater makes it ideal for chemical plants near coastal areas or marine-related processes.

Industry Trends Driving Monel K500 Demand

The chemical industry is evolving fast, and our Monel K500 Spring Wire is right in step with the trends. One major shift is the focus on sustainability. Companies want materials that last longer to reduce maintenance costs and environmental impact. Our Monel K500 wire is a perfect fit—its durability means fewer replacements, less downtime, and a smaller footprint.

Another trend is the push into harsher chemical environments. As the industry develops more aggressive processes—think high-concentration acids or complex chemical reactions—the demand for corrosion-resistant, high-strength materials is soaring. Our Monel K500 wire is built for these challenges, offering the reliability needed for next-gen chemical processing systems.

Precision engineering is also a big deal. With more complex equipment designs and tighter tolerances, the chemical industry needs materials that can be customized without sacrificing performance. Our ability to deliver tailored wire specs—down to the exact diameter or coil design—gives us an edge, ensuring our springs integrate seamlessly into cutting-edge applications.

Comparison Table: Monel K500 vs. Stainless Steel vs. Hastelloy C-276 for Chemical Industry Springs

Parameter	Monel K500	Stainless Steel (316)	Hastelloy C-276
Composition	Nickel (66%), Copper (30%), Al, Ti	Iron, Chromium (16-18%), Nickel (10-14%)	Nickel (57%), Molybdenum (15-17%), Chromium
Corrosion Resistance	Excellent (acids, alkalis, seawater)	Good (general corrosion, some chemicals)	Excellent (acids, high-temperature)
Temperature Range	Up to 1000°F (538°C)	Up to 870°F (465°C)	Up to 1900°F (1038°C)
Tensile Strength	100-160 ksi (690-1103 MPa)	75-90 ksi (515-620 MPa)	100-150 ksi (690-1034 MPa)
Non-Magnetic	Yes	Yes (austenitic grades)	Yes
Cost	Moderate	Low	High
Best Applications	Chemical industry, marine, oil and gas	General industrial, less corrosive uses	Extreme chemical, high-temperature uses
Fatigue Resistance	Very High	Moderate	Very High

Choosing our Monel K500 Spring Wire means choosing a partner who’s obsessed with quality. Our competitors might offer similar products, but we go the extra mile with rigorous quality control at every step. From sourcing raw materials to final production, we ensure every batch meets the strict standards of the chemical industry, so you can trust it to perform in critical applications.

We know downtime is costly in chemical processing. That’s why we’ve optimized our production and logistics to deliver your wire faster, without compromising on quality. Need help picking the right specs? Our technical team is ready to guide you, ensuring your springs are perfectly suited to your project, whether it’s a small test run or a large-scale order.

Innovation is at the core of what we do. We’re constantly exploring ways to improve our Monel K500 wire, from boosting fatigue resistance to offering new customization options. This keeps us ahead of the competition and ensures you’re getting the latest advancements in spring wire technology.

The Future of Monel K500 Spring Wire

The future looks bright for Monel K500 Spring Wire in the chemical industry. As companies push for more efficient, sustainable operations, the demand for durable, corrosion-resistant materials will keep growing. Our wire is ready to meet these needs, offering the strength and reliability required for everything from chemical reactors to offshore processing systems.

We’re also investing in what’s next. Our R&D team is working on ways to make our Monel K500 wire even better, whether it’s through advanced manufacturing techniques or tweaking the alloy for enhanced performance. We’re not just keeping up with industry demands—we’re setting the standard for what’s possible.

Why Monel K500 is Your Go-To for Chemical Industry Springs

Our Corrosion-Resistant Monel K500 Wire for Chemical Industry Springs is built to handle the toughest challenges in chemical processing. Its corrosion resistance, high strength, and customizability make it the perfect choice for springs in reactors, valves, and processing equipment. With our focus on quality, fast delivery, and expert support, you’re getting a solution that’s tailored to your needs and built to last.

Whether you’re designing springs for a high-pressure chemical reactor, a corrosive processing system, or a coastal plant, our Monel K500 wire has you covered. Ready to see how it can power your next project? Let’s get to work and build something that stands up to the toughest chemical environments.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

1. What is Monel K500 Wire made of?
   Monel K500 is a nickel-copper alloy with about 66% nickel, 30% copper, and additions of aluminum and titanium for enhanced strength and corrosion resistance.

2. Why is Monel K500 ideal for chemical industry springs?
   Its superior corrosion resistance to acids, alkalis, and other harsh chemicals, combined with high strength, makes it perfect for chemical processing environments.

3. What chemical industry applications use Monel K500 Spring Wire?
   Springs in valves, pumps, reactors, and processing equipment exposed to corrosive chemicals and high stress.

4. Can Monel K500 Spring Wire handle high temperatures?
   Yes, it performs reliably up to 1000°F (538°C), maintaining strength and corrosion resistance in demanding conditions.

5. Is Monel K500 Spring Wire non-magnetic?
   Yes, its non-magnetic properties make it suitable for sensitive equipment like sensors and instrumentation in chemical plants.

6. What customization options are available for Monel K500 springs?
   We offer custom diameters, tensile strengths, coil designs, and finishes to meet specific chemical industry requirements.

7. How does Monel K500 compare to stainless steel for chemical industry springs?
   Monel K500 provides better corrosion resistance in aggressive chemical environments and higher strength than stainless steel, ensuring longer-lasting performance.

8. What industries benefit from Monel K500 Spring Wire?
   Chemical processing, oil and gas, marine, and aerospace industries rely on its durability and corrosion resistance.
