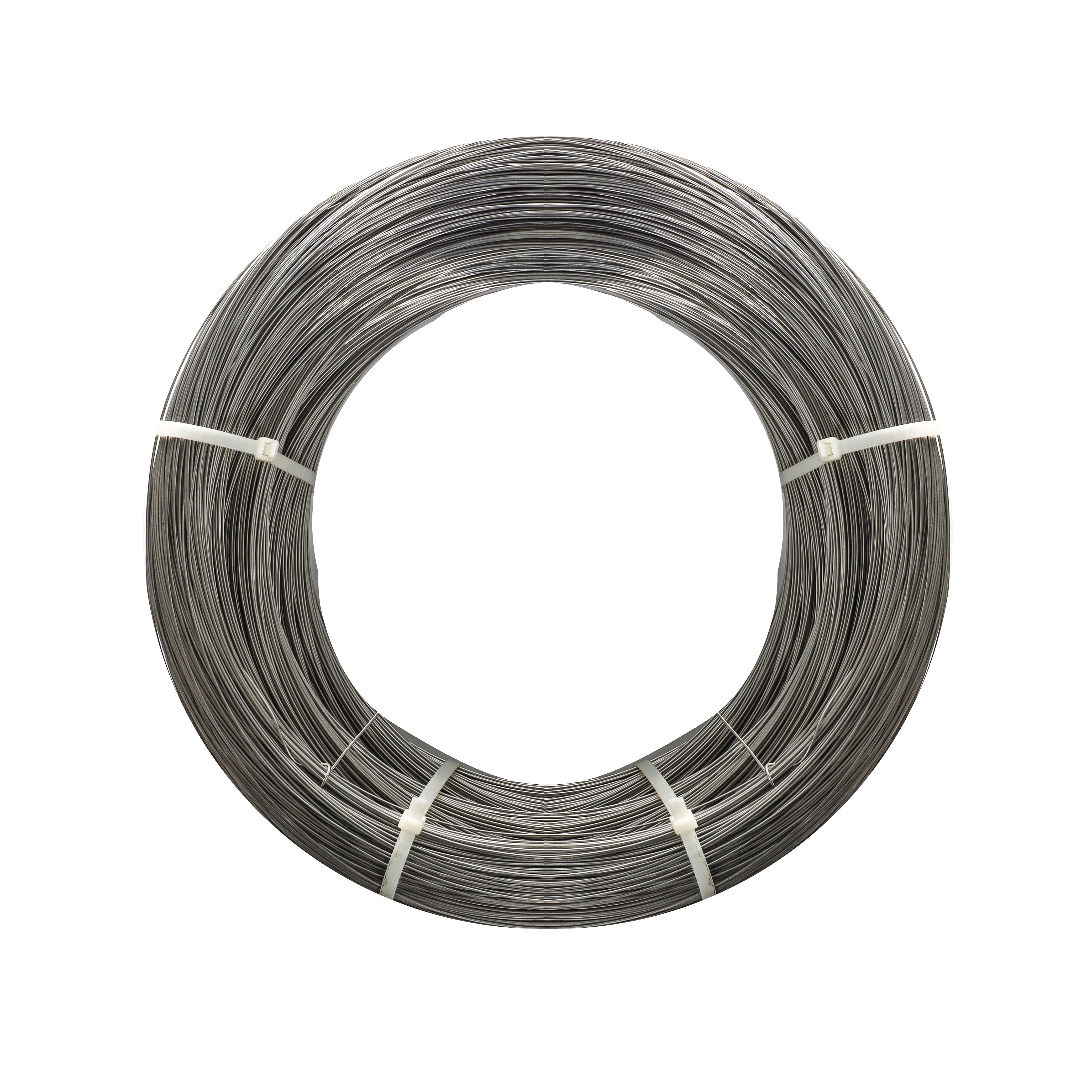

Our Monel K500 Nickel-Copper Alloy Wire for Aerospace Applications is built to handle the extreme demands of the aerospace industry. From scorching jet engines to high-stress landing gear, this wire delivers the strength, durability, and corrosion resistance you need for springs that keep aircraft systems running smoothly. Let’s dive into what makes our Monel K500 wire a top choice, explore its applications, and check out the trends driving its demand in aerospace.

For more details, pls directly contact us.

Our Monel K500 Spring Wire is crafted from a nickel-copper alloy, blending about 66% nickel with 30% copper, plus aluminum and titanium to boost its strength and corrosion resistance. This alloy is a powerhouse, offering higher strength than Monel 400 while maintaining excellent resistance to jet fuel, acids, and seawater. It’s the go-to material for springs that need to perform in the high-stakes, high-stress world of aerospace.

This wire thrives in extreme conditions. It handles temperatures up to 1000°F (538°C), resists stress-corrosion cracking and pitting, and stays non-magnetic, which is critical for sensitive aerospace components like avionics. We offer full customization—diameters, tensile strengths, coil designs, and finishes—so you get springs that fit your aerospace project perfectly, whether it’s for a jet engine or a precision sensor.

Monel 400 and Monel K-500 Spring Wire Parameter Table

Parameter	Monel 400	Monel K-500
Material	Nickel-Copper alloy (solid-solution strengthened, hardenable only by cold working)	Nickel-Copper alloy (age-hardenable, with added aluminum and titanium for enhanced strength and hardness)
Specifications	AMS 7233, ASTM B164, UNS N04400, QQ-N-281	AMS 4676, ASTM B865, UNS N05500, BS 3075 NA 18, NACE MR0175, QQ-N-286
Chemical Composition	Ni: ≥63% Cu: 28-34% Fe: ≤2.5% Mn: ≤2.0% C: ≤0.3% Si: ≤0.5% S: ≤0.024%	Ni: 63-70% Cu: 27-33% Al: 2.3-3.15% Ti: 0.35-0.85% Fe: ≤2.0% Mn: ≤1.5% C: ≤0.25% Si: ≤0.5% S: ≤0.01%
Tensile Strength	Annealed: 70-110 ksi (480-760 MPa) Spring Temper: 145-180 ksi (1000-1240 MPa)	Annealed: 80-110 ksi (550-760 MPa) Spring Temper + Aged: 145-200 ksi (1000-1380 MPa)
Density	8.80 g/cm³ (0.318 lb/in³)	8.44 g/cm³ (0.305 lb/in³)
Max Operating Temperature	815°C (1500°F), recommended for springs ≤450°F (232°C)	450°F (232°C), suitable for -184°C to 232°C (-300°F to 450°F)
Hardness	Rockwell C23-32 (spring temper)	Rockwell C30-40 (spring temper + aged)
Wire Diameter	0.10 mm - 14 mm	0.10 mm - 14 mm
Applications	Marine engineering (fasteners, valves, pumps, propeller shafts), chemical processing equipment, electronic components, petroleum distillation towers	Marine engineering (pump shafts, fasteners, propeller shafts), oil and gas industry, chemical processing, medical equipment, aerospace

For more details, pls directly contact us.

We’ve engineered our Monel K500 Spring Wire to be a game-changer for aerospace applications. Here’s why it stands out:

• Unmatched Corrosion Resistance: Jet fuel, acids, and seawater don’t faze it, ensuring your springs stay corrosion-free in harsh aerospace environments.

• High Strength and Toughness: With tensile strengths of 100-160 ksi, our wire handles heavy loads and stress without losing its edge.

• Custom-Built for You: From micro-springs for avionics to heavy-duty ones for landing gear, we tailor every detail to your specs.

• Non-Magnetic Properties: Perfect for sensitive aerospace systems like sensors and instrumentation where magnetic interference is a no-go.

• Extreme Durability: From high-heat engines to corrosive environments, our wire delivers reliable performance every time.

Compared to other companies, we’re all about precision and reliability. While others might offer similar alloys, we stand out with tighter quality control, faster delivery, and hands-on technical support. Our team works with you to ensure your springs meet the strict standards of aerospace, whether you’re building a prototype or scaling up for production.

Applications of Monel K500 Spring Wire

Our Monel K500 Spring Wire is hard at work across a range of aerospace applications. Here’s where it’s making a difference:

• Jet Engines: Springs in turbines and fuel systems rely on our wire’s ability to handle high heat and corrosive jet fuel.

• Landing Gear: Our springs provide strength and durability under the intense stress and corrosion of takeoff and landing.

• Avionics: Non-magnetic springs in sensors and control systems benefit from our wire’s precision and reliability.

• Actuators: Springs in hydraulic and pneumatic systems depend on our wire’s high strength and corrosion resistance.

• Spacecraft Components: Our wire’s durability in extreme temperatures and environments makes it ideal for space exploration systems.

Industry Trends Driving Monel K500 Demand

The aerospace industry is evolving fast, and our Monel K500 Spring Wire is right in step with the trends. One major shift is the push for sustainability. Aerospace companies want materials that last longer to reduce maintenance costs and environmental impact. Our Monel K500 wire is a perfect fit—its durability means fewer replacements, less downtime, and a smaller footprint.

Another trend is the demand for high-performance materials in extreme environments. As aerospace systems push into higher temperatures and more corrosive conditions—think next-gen jet engines or spacecraft—the need for materials that can handle heat and corrosion is soaring. Our Monel K500 wire is built for these challenges, offering the reliability needed for cutting-edge aerospace applications.

Precision engineering is also a big deal. With increasingly complex designs and tighter tolerances, the industry needs materials that can be customized without sacrificing performance. Our ability to deliver tailored wire specs—down to the exact diameter or coil design—gives us an edge, ensuring our springs integrate seamlessly into advanced aerospace systems.

Comparison Table: Monel K500 vs. Stainless Steel vs. Inconel 718 for Aerospace Springs

Parameter	Monel K500	Stainless Steel (316)	Inconel 718
Composition	Nickel (66%), Copper (30%), Al, Ti	Iron, Chromium (16-18%), Nickel (10-14%)	Nickel (50-55%), Chromium (17-21%), Molybdenum
Corrosion Resistance	Excellent (jet fuel, acids, seawater)	Good (general corrosion, some chemicals)	Excellent (high-temperature, oxidation)
Temperature Range	Up to 1000°F (538°C)	Up to 870°F (465°C)	Up to 1300°F (704°C)
Tensile Strength	100-160 ksi (690-1103 MPa)	75-90 ksi (515-620 MPa)	180-220 ksi (1241-1517 MPa)
Non-Magnetic	Yes	Yes (austenitic grades)	Yes
Cost	Moderate	Low	High
Best Applications	Aerospace, marine, chemical processing	General industrial, less extreme uses	Extreme high-temperature, aerospace
Fatigue Resistance	Very High	Moderate	Very High

Choosing our Monel K500 Spring Wire means choosing a partner who’s obsessed with quality. Our competitors might offer similar products, but we go the extra mile with rigorous quality control at every step. From sourcing raw materials to final production, we ensure every batch meets the strict standards of the aerospace industry, so you can trust it to perform in critical applications.

We know time is critical in aerospace. That’s why we’ve optimized our production and logistics to deliver your wire faster, without compromising on quality. Need help picking the right specs? Our technical team is ready to guide you, ensuring your springs are perfectly suited to your project, whether it’s a small test run or a large-scale order.

Innovation is at the core of what we do. We’re constantly exploring ways to improve our Monel K500 wire, from boosting fatigue resistance to offering new customization options. This keeps us ahead of the competition and ensures you’re getting the latest advancements in spring wire technology.

The Future of Monel K500 Spring Wire

The future looks bright for Monel K500 Spring Wire in aerospace applications. As the industry pushes for more efficient, sustainable operations, the demand for durable, high-strength materials will keep growing. Our wire is ready to meet these needs, offering the reliability and performance required for everything from jet engines to spacecraft components.

We’re also investing in what’s next. Our R&D team is working on ways to make our Monel K500 wire even better, whether it’s through advanced manufacturing techniques or tweaking the alloy for enhanced performance. We’re not just keeping up with industry demands—we’re setting the standard for what’s possible.

Why Monel K500 is Your Go-To for Aerospace Springs

Our Monel K500 Nickel-Copper Alloy Wire for Aerospace Applications is built to handle the toughest challenges in the aerospace industry. Its corrosion resistance, high strength, and customizability make it the perfect choice for springs in jet engines, landing gear, and avionics. With our focus on quality, fast delivery, and expert support, you’re getting a solution that’s tailored to your needs and built to last.

Whether you’re designing springs for a next-gen jet engine, a spacecraft, or a precision avionics system, our Monel K500 wire has you covered. Ready to see how it can power your next project? Let’s get to work and build something that soars.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

1. What is Monel K500 Wire made of?
   Monel K500 is a nickel-copper alloy with about 66% nickel, 30% copper, and additions of aluminum and titanium for enhanced strength and corrosion resistance.

2. Why is Monel K500 ideal for aerospace applications?
   Its high strength, corrosion resistance, and ability to perform in extreme temperatures make it perfect for aerospace springs in harsh conditions.

3. What aerospace applications use Monel K500 Spring Wire?
   Springs in jet engines, landing gear, actuators, and avionics exposed to high stress, heat, and corrosive jet fuel.

4. Can Monel K500 Spring Wire handle high temperatures?
   Yes, it performs reliably up to 1000°F (538°C), maintaining strength and corrosion resistance in extreme aerospace environments.

5. Is Monel K500 Spring Wire non-magnetic?
   Yes, its non-magnetic properties make it ideal for sensitive aerospace components like sensors and instrumentation.

6. What customization options are available for Monel K500 springs?
   We offer custom diameters, tensile strengths, coil designs, and finishes to meet specific aerospace application needs.

7. How does Monel K500 compare to stainless steel for aerospace springs?
   Monel K500 offers superior corrosion resistance and higher strength in extreme conditions, ensuring better performance than stainless steel.

8. What industries benefit from Monel K500 Spring Wire?
   Aerospace, oil and gas, chemical processing, and marine industries rely on its durability and high-performance characteristics.
