Our Durable Monel K500 Spring Wire for High-Temperature Environments is built to take on the toughest heat and corrosion challenges. Whether it’s the scorching conditions of an aerospace engine or the harsh environment of a chemical reactor, this wire delivers the strength, durability, and reliability you need for springs that keep performing. Let’s dive into what makes our Monel K500 wire a top choice, explore its applications, and check out the trends driving its demand across industries.

For more details, pls directly contact us.

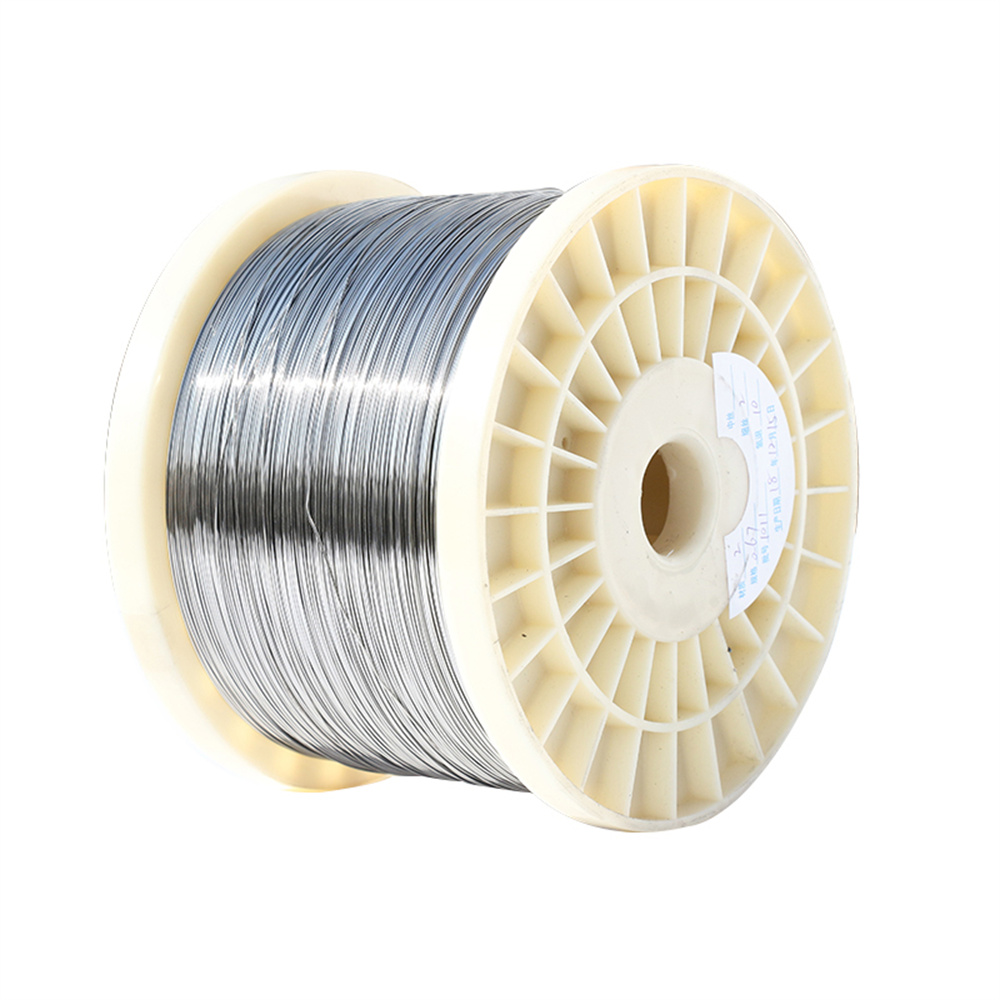

Our Monel K500 Spring Wire is crafted from a nickel-copper alloy, packing about 66% nickel and 30% copper, with aluminum and titanium added to boost its strength and corrosion resistance. This alloy is a powerhouse, offering higher strength than Monel 400 while maintaining excellent resistance to acids, alkalis, and seawater. It’s the go-to material for springs that need to perform in high-temperature environments without breaking a sweat.

This wire is a beast in extreme conditions. It holds up at temperatures up to 1000°F (538°C), resists stress-corrosion cracking and pitting, and stays non-magnetic, which is critical for sensitive equipment like sensors. We offer full customization—diameters, tensile strengths, coil designs, and finishes—so you get springs that fit your high-temperature project perfectly, whether it’s for a jet engine or a refinery system.

Monel 400 and Monel K-500 Spring Wire Parameter Table

Parameter	Monel 400	Monel K-500
Material	Nickel-Copper alloy (solid-solution strengthened, hardenable only by cold working)	Nickel-Copper alloy (age-hardenable, with added aluminum and titanium for enhanced strength and hardness)
Specifications	AMS 7233, ASTM B164, UNS N04400, QQ-N-281	AMS 4676, ASTM B865, UNS N05500, BS 3075 NA 18, NACE MR0175, QQ-N-286
Chemical Composition	Ni: ≥63% Cu: 28-34% Fe: ≤2.5% Mn: ≤2.0% C: ≤0.3% Si: ≤0.5% S: ≤0.024%	Ni: 63-70% Cu: 27-33% Al: 2.3-3.15% Ti: 0.35-0.85% Fe: ≤2.0% Mn: ≤1.5% C: ≤0.25% Si: ≤0.5% S: ≤0.01%
Tensile Strength	Annealed: 70-110 ksi (480-760 MPa) Spring Temper: 145-180 ksi (1000-1240 MPa)	Annealed: 80-110 ksi (550-760 MPa) Spring Temper + Aged: 145-200 ksi (1000-1380 MPa)
Density	8.80 g/cm³ (0.318 lb/in³)	8.44 g/cm³ (0.305 lb/in³)
Max Operating Temperature	815°C (1500°F), recommended for springs ≤450°F (232°C)	450°F (232°C), suitable for -184°C to 232°C (-300°F to 450°F)
Hardness	Rockwell C23-32 (spring temper)	Rockwell C30-40 (spring temper + aged)
Wire Diameter	0.10 mm - 14 mm	0.10 mm - 14 mm
Applications	Marine engineering (fasteners, valves, pumps, propeller shafts), chemical processing equipment, electronic components, petroleum distillation towers	Marine engineering (pump shafts, fasteners, propeller shafts), oil and gas industry, chemical processing, medical equipment, aerospace

For more details, pls directly contact us.

We’ve engineered our Monel K500 Spring Wire to be a game-changer for high-temperature applications. Here’s why it stands out:

• Handles Extreme Heat: Our wire stays strong and reliable at temperatures up to 1000°F, making it perfect for high-heat environments like engines and reactors.

• Top-Notch Corrosion Resistance: Acids, alkalis, and seawater don’t faze it, ensuring your springs stay corrosion-free in harsh conditions.

• High Strength and Toughness: With tensile strengths of 100-160 ksi, our wire handles heavy loads and stress without losing its edge.

• Custom-Built for You: From precision springs for sensors to heavy-duty ones for turbines, we tailor every detail to your specs.

• Non-Magnetic Advantage: Ideal for sensitive systems like avionics or instrumentation where magnetic interference is a no-go.

Compared to other companies, we’re all about precision and reliability. While others might offer similar alloys, we stand out with tighter quality control, faster delivery, and hands-on technical support. Our team works with you to ensure your springs are spot-on, whether you’re building a prototype or scaling up for production.

Applications of Monel K500 Spring Wire

Our Monel K500 Spring Wire is hard at work across industries where high temperatures and corrosion are constant challenges. Here’s where it’s making a difference:

• Aerospace: Springs in jet engines, turbines, and actuators rely on our wire’s ability to handle high heat and corrosive jet fuel.

• Oil and Gas: From refinery equipment to offshore drilling rigs, our springs perform in high-pressure, high-temperature environments.

• Chemical Processing: Springs in reactors and valves face corrosive chemicals and heat, and our wire keeps them running strong.

• Power Generation: Turbines and generators benefit from our wire’s durability in high-temperature, corrosive conditions.

• Marine Applications: Springs in coastal or offshore systems exposed to seawater and heat rely on our wire’s corrosion resistance and strength.

Industry Trends Driving Monel K500 Demand

The industrial world is evolving fast, and our Monel K500 Spring Wire is right in step with the trends. One major shift is the focus on sustainability. Companies want materials that last longer to cut down on maintenance costs and environmental impact. Our Monel K500 wire is a perfect fit—its durability means fewer replacements, less downtime, and a smaller footprint.

Another trend is the push into harsher operating environments. As industries like aerospace, oil and gas, and chemical processing tackle more extreme conditions—think high-temperature reactors or deep-sea rigs—the demand for materials that can handle heat and corrosion is soaring. Our Monel K500 wire is built for these challenges, offering the reliability needed for next-gen systems.

Precision engineering is also a big deal. With more complex designs and tighter tolerances, industries need materials that can be customized without sacrificing performance. Our ability to deliver tailored wire specs—down to the exact diameter or coil design—gives us an edge, ensuring our springs integrate seamlessly into cutting-edge applications.

Comparison Table: Monel K500 vs. Stainless Steel vs. Inconel 718 for High-Temperature Springs

Parameter	Monel K500	Stainless Steel (316)	Inconel 718
Composition	Nickel (66%), Copper (30%), Al, Ti	Iron, Chromium (16-18%), Nickel (10-14%)	Nickel (50-55%), Chromium (17-21%), Molybdenum
Corrosion Resistance	Excellent (acids, alkalis, seawater)	Good (general corrosion, some chemicals)	Excellent (high-temperature, oxidation)
Temperature Range	Up to 1000°F (538°C)	Up to 870°F (465°C)	Up to 1300°F (704°C)
Tensile Strength	100-160 ksi (690-1103 MPa)	75-90 ksi (515-620 MPa)	180-220 ksi (1241-1517 MPa)
Non-Magnetic	Yes	Yes (austenitic grades)	Yes
Cost	Moderate	Low	High
Best Applications	High-temperature springs, marine, chemical	General industrial, less extreme uses	Extreme high-temperature, aerospace
Fatigue Resistance	Very High	Moderate	Very High

Choosing our Monel K500 Spring Wire means choosing a partner who’s obsessed with quality. Our competitors might offer similar products, but we go the extra mile with rigorous quality control at every step. From sourcing raw materials to final production, we ensure every batch meets the strict standards of high-temperature industries, so you can trust it to perform in critical applications.

We know downtime is costly in industries like aerospace and oil and gas. That’s why we’ve optimized our production and logistics to deliver your wire faster, without compromising on quality. Need help picking the right specs? Our technical team is ready to guide you, ensuring your springs are perfectly suited to your project, whether it’s a small test run or a large-scale order.

Innovation is at the core of what we do. We’re constantly exploring ways to improve our Monel K500 wire, from boosting fatigue resistance to offering new customization options. This keeps us ahead of the competition and ensures you’re getting the latest advancements in spring wire technology.

The Future of Monel K500 Spring Wire

The future looks bright for Monel K500 Spring Wire in high-temperature environments. As industries push for more efficient, sustainable operations, the demand for durable, high-strength materials will keep growing. Our wire is ready to meet these needs, offering the reliability and performance required for everything from aerospace engines to chemical reactors.

We’re also investing in what’s next. Our R&D team is working on ways to make our Monel K500 wire even better, whether it’s through advanced manufacturing techniques or tweaking the alloy for enhanced performance. We’re not just keeping up with industry demands—we’re setting the standard for what’s possible.

Why Monel K500 is Your Go-To for High-Temperature Springs

Our Durable Monel K500 Spring Wire for High-Temperature Environments is built to handle the toughest challenges across industries. Its ability to withstand high heat, resist corrosion, and offer customizability makes it the perfect choice for springs in aerospace, oil and gas, and chemical processing applications. With our focus on quality, fast delivery, and expert support, you’re getting a solution that’s tailored to your needs and built to last.

Whether you’re designing springs for a jet engine, a refinery, or a power plant, our Monel K500 wire has you covered. Ready to see how it can power your next project? Let’s get to work and build something that thrives in the heat.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

1. What is Monel K500 Spring Wire made of?
   Monel K500 is a nickel-copper alloy with about 66% nickel, 30% copper, and additions of aluminum and titanium for enhanced strength and corrosion resistance.

2. Why is Monel K500 ideal for high-temperature environments?
   Its ability to maintain strength and resist corrosion at temperatures up to 1000°F (538°C) makes it perfect for springs in extreme heat.

3. What applications use Monel K500 Spring Wire in high-temperature settings?
   Springs in aerospace engines, chemical reactors, oil and gas refineries, and power generation systems exposed to high heat.

4. Can Monel K500 Spring Wire withstand corrosive environments?
   Yes, it offers excellent resistance to acids, alkalis, and seawater, ensuring durability in harsh conditions.

5. Is Monel K500 Spring Wire non-magnetic?
   Yes, its non-magnetic properties make it suitable for sensitive applications like sensors and instrumentation.

6. What customization options are available for Monel K500 springs?
   We offer custom diameters, tensile strengths, coil designs, and finishes to meet specific high-temperature application needs.

7. How does Monel K500 compare to stainless steel for high-temperature springs?
   Monel K500 provides better corrosion resistance and higher strength in extreme heat compared to stainless steel, ensuring longer-lasting performance.

8. What industries benefit from Monel K500 Spring Wire?
   Aerospace, oil and gas, chemical processing, power generation, and marine industries rely on its high-temperature durability.
