Our Monel 400 Alloy Spring Wire for Oil and Gas Industry is built to handle the toughest challenges in one of the world’s most demanding sectors. From corrosive sour gas to high-pressure drilling rigs, our wire delivers the strength, durability, and reliability you need for springs that keep your operations running smoothly. Let’s dive into what makes our Monel 400 spring wire a standout, explore its applications, and check out the trends shaping the oil and gas industry.

For more details, pls directly contact us.

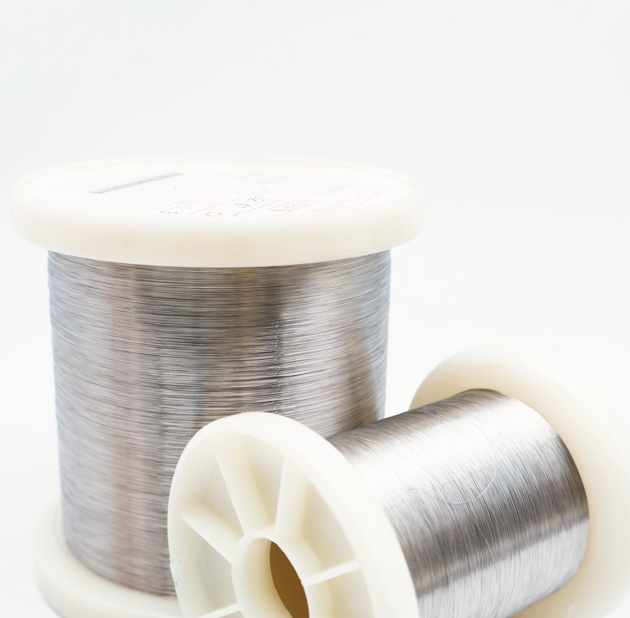

Our Monel 400 Spring Wire is crafted from a nickel-copper alloy, packing about 67% nickel and 23% copper, with a touch of iron and manganese for extra toughness. This blend gives it top-notch corrosion resistance, especially against harsh substances like sour gas, seawater, and acids. It’s the kind of material you want for springs that need to perform in the brutal conditions of oil and gas exploration and production.

This wire is a beast in extreme environments. It holds up at temperatures up to 1000°F (538°C), resists pitting and crevice corrosion, and stays non-magnetic, which is crucial for sensitive equipment like sensors. We offer full customization—think tailored diameters, tensile strengths, coil designs, and finishes—so you get exactly what your oil and gas project needs.

Monel 400 and Monel K-500 Spring Wire Parameter Table

Parameter	Monel 400	Monel K-500
Material	Nickel-Copper alloy (solid-solution strengthened, hardenable only by cold working)	Nickel-Copper alloy (age-hardenable, with added aluminum and titanium for enhanced strength and hardness)
Specifications	AMS 7233, ASTM B164, UNS N04400, QQ-N-281	AMS 4676, ASTM B865, UNS N05500, BS 3075 NA 18, NACE MR0175, QQ-N-286
Chemical Composition	Ni: ≥63% Cu: 28-34% Fe: ≤2.5% Mn: ≤2.0% C: ≤0.3% Si: ≤0.5% S: ≤0.024%	Ni: 63-70% Cu: 27-33% Al: 2.3-3.15% Ti: 0.35-0.85% Fe: ≤2.0% Mn: ≤1.5% C: ≤0.25% Si: ≤0.5% S: ≤0.01%
Tensile Strength	Annealed: 70-110 ksi (480-760 MPa) Spring Temper: 145-180 ksi (1000-1240 MPa)	Annealed: 80-110 ksi (550-760 MPa) Spring Temper + Aged: 145-200 ksi (1000-1380 MPa)
Density	8.80 g/cm³ (0.318 lb/in³)	8.44 g/cm³ (0.305 lb/in³)
Max Operating Temperature	815°C (1500°F), recommended for springs ≤450°F (232°C)	450°F (232°C), suitable for -184°C to 232°C (-300°F to 450°F)
Hardness	Rockwell C23-32 (spring temper)	Rockwell C30-40 (spring temper + aged)
Wire Diameter	0.10 mm - 14 mm	0.10 mm - 14 mm
Applications	Marine engineering (fasteners, valves, pumps, propeller shafts), chemical processing equipment, electronic components, petroleum distillation towers	Marine engineering (pump shafts, fasteners, propeller shafts), oil and gas industry, chemical processing, medical equipment, aerospace

For more details, pls directly contact us.

We’ve engineered our Monel 400 Spring Wire to be a game-changer for oil and gas applications. Here’s why it’s a cut above:

• Unbeatable Corrosion Resistance: Sour gas, seawater, and acids don’t stand a chance. Our wire keeps springs corrosion-free in the harshest conditions.

• High Strength and Durability: With tensile strengths of 70-110 ksi, our wire handles high stress and fatigue without losing its edge.

• Custom-Built for You: From small springs for precision valves to heavy-duty ones for drilling rigs, we tailor every detail to your specs.

• Non-Magnetic Properties: Perfect for sensitive oil and gas equipment like instrumentation where magnetic interference is a no-go.

• Extreme Performance: From deep-sea platforms to high-heat refineries, our wire stays strong and reliable in any environment.

Compared to other companies, we’re all about precision and reliability. While others might offer similar alloys, we stand out with tighter quality control, faster delivery, and expert technical support. Our team works with you to nail the perfect specs, whether you’re building a prototype or scaling up for production.

Applications of Monel 400 Spring Wire

Our Monel 400 Spring Wire is a workhorse across a range of oil and gas applications. Here’s where it’s making a difference:

• Drilling Equipment: Springs in drilling tools and rigs face high pressure and corrosive fluids. Our wire keeps them running strong.

• Valves and Pumps: Our springs ensure reliable performance in valves and pumps exposed to sour gas and seawater.

• Pipeline Systems: From offshore pipelines to onshore refineries, our wire delivers durability in high-pressure, corrosive environments.

• Subsea Systems: Non-magnetic springs in underwater sensors and robotics benefit from our wire’s corrosion resistance and strength.

• Refinery Equipment: Springs in processing units handle high temperatures and aggressive chemicals, and our wire stands up to the challenge.

Industry Trends Driving Monel 400 Demand

The oil and gas industry is evolving, and our Monel 400 Spring Wire is right in step with the changes. One big trend is the push for sustainability. Companies are looking for materials that last longer to reduce maintenance costs and environmental impact. Our Monel 400 wire fits the bill—its durability means fewer replacements, saving time, money, and resources.

Another trend is the exploration of harsher environments. As oil and gas operations move into deeper waters and more corrosive reservoirs, the need for high-performance materials is growing. Our Monel 400 wire is built for these challenges, offering the corrosion resistance and strength needed for next-gen exploration and production.

Precision engineering is also a key focus. With more complex equipment and tighter tolerances, industries need materials that can be customized without sacrificing performance. Our ability to deliver tailored wire specs—down to the exact diameter or coil design—gives us an edge, ensuring our springs integrate seamlessly into cutting-edge oil and gas systems.

Why We’re the Best Choice

Choosing our Monel 400 Spring Wire means choosing a partner who’s all in on quality. Our competitors might offer similar products, but we go the extra mile with rigorous quality control at every step. From sourcing raw materials to final production, we ensure every batch meets the strict standards of the oil and gas industry.

We know downtime is costly in this sector. That’s why we’ve optimized our production and logistics to deliver your wire faster, without compromising on quality. Need help picking the right specs? Our technical team is ready to guide you, ensuring your springs are perfectly suited to your project, whether it’s a small test run or a large-scale order.

Innovation is at the heart of what we do. We’re constantly exploring ways to improve our Monel 400 wire, from boosting fatigue resistance to offering new customization options. This keeps us ahead of the competition and ensures you’re getting the latest advancements in spring wire technology.

The Future of Monel 400 Spring Wire

The future looks bright for Monel 400 Spring Wire in the oil and gas industry. As companies push for more efficient, sustainable operations, the demand for durable, corrosion-resistant materials will keep growing. Our wire is ready to meet these needs, offering the reliability and strength required for everything from deep-sea drilling to onshore refineries.

We’re also investing in what’s next. Our R&D team is working on ways to enhance Monel 400 wire, whether it’s through advanced manufacturing techniques or tweaking the alloy for even better performance. We’re not just keeping up with the industry—we’re setting the standard for what’s possible.

Comparison Table: Monel 400 vs. Stainless Steel vs. Inconel 625 for Oil and Gas Springs

Parameter	Monel 400	Stainless Steel (316)	Inconel 625
Composition	Nickel (67%), Copper (23%), Iron, Manganese	Iron, Chromium (16-18%), Nickel (10-14%)	Nickel (58%), Chromium (20-23%), Molybdenum
Corrosion Resistance	Excellent (seawater, acids, sour gas)	Good (general corrosion, some chemicals)	Excellent (high-temperature, acids)
Temperature Range	Up to 1000°F (538°C)	Up to 870°F (465°C)	Up to 1800°F (982°C)
Tensile Strength	70-110 ksi (480-760 MPa)	75-90 ksi (515-620 MPa)	120-150 ksi (827-1034 MPa)
Non-Magnetic	Yes	Yes (austenitic grades)	Yes
Cost	Moderate	Low	High
Best Applications	Oil and gas, marine, chemical processing	General industrial, less corrosive uses	High-temperature, extreme corrosion uses
Fatigue Resistance	High	Moderate	Very High

Our Monel 400 Alloy Spring Wire for Oil and Gas Industry is built to handle the toughest challenges in exploration and production. Its corrosion resistance, high strength, and customizability make it the perfect choice for springs in valves, pumps, and drilling equipment. With our focus on quality, fast delivery, and expert support, you’re getting a solution that’s tailored to your needs and built to last.

Whether you’re outfitting a new rig, upgrading pipeline systems, or designing cutting-edge subsea equipment, our Monel 400 wire has you covered. Ready to see how it can power your next project? Let’s get to work and build something that stands up to the toughest conditions.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

1. What is Monel 400 Spring Wire made of?
   Monel 400 is a nickel-copper alloy with about 67% nickel, 23% copper, and small amounts of iron and manganese for enhanced strength and corrosion resistance.

2. Why is Monel 400 suitable for oil and gas applications?
   Its excellent resistance to corrosive environments like sour gas, seawater, and acids makes it ideal for springs in oil and gas equipment.

3. What oil and gas applications use Monel 400 Spring Wire?
   Springs in valves, pumps, drilling equipment, and pipeline systems where corrosion and high pressure are concerns.

4. Can Monel 400 Spring Wire handle high temperatures?
   Yes, it performs reliably up to 1000°F (538°C), maintaining strength and corrosion resistance in extreme conditions.

5. Is Monel 400 Spring Wire non-magnetic?
   Yes, its non-magnetic properties are perfect for sensitive oil and gas equipment like sensors and instrumentation.

6. What customization options are available for Monel 400 springs?
   We offer custom diameters, tensile strengths, coil designs, and finishes to meet specific oil and gas industry needs.

7. How does Monel 400 compare to stainless steel for oil and gas springs?
   Monel 400 offers superior corrosion resistance in harsh environments like sour gas and seawater, with better durability than stainless steel.

8. What industries benefit from Monel 400 Spring Wire?
   Oil and gas, chemical processing, marine, and aerospace industries rely on its strength and corrosion resistance.
