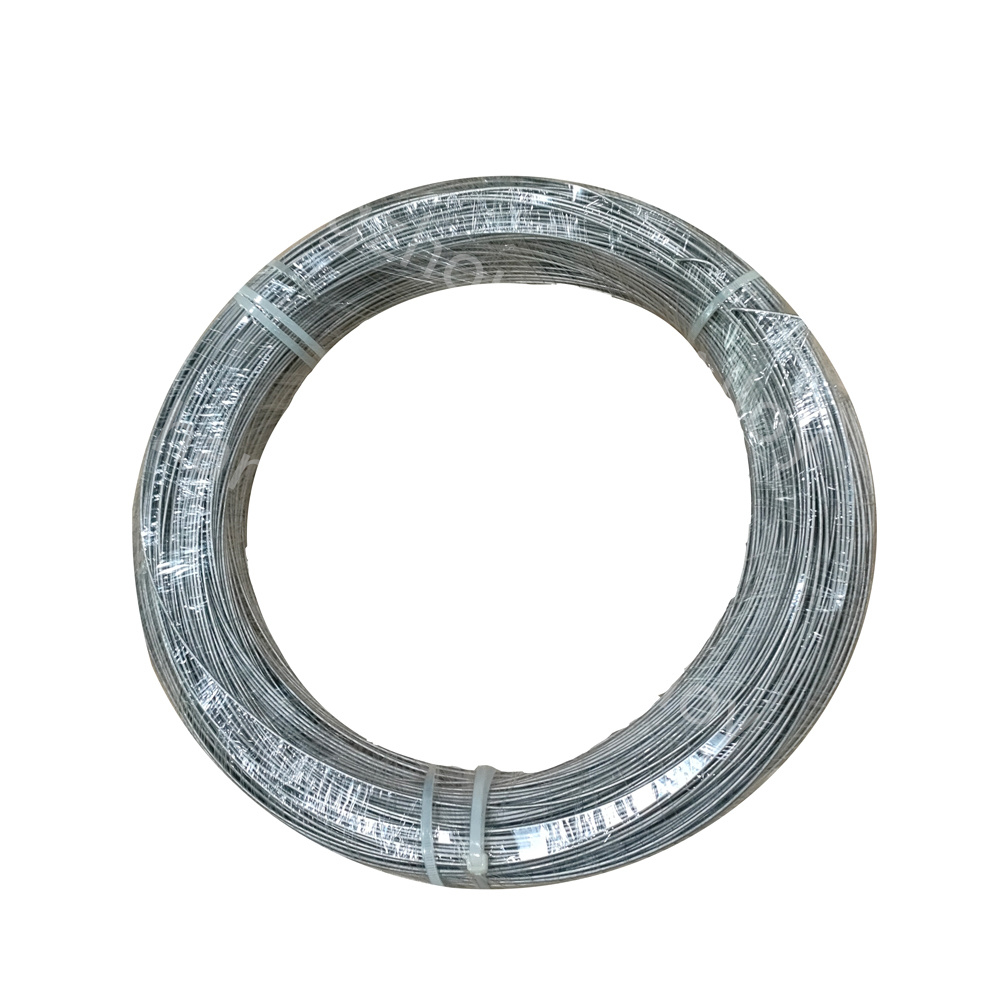

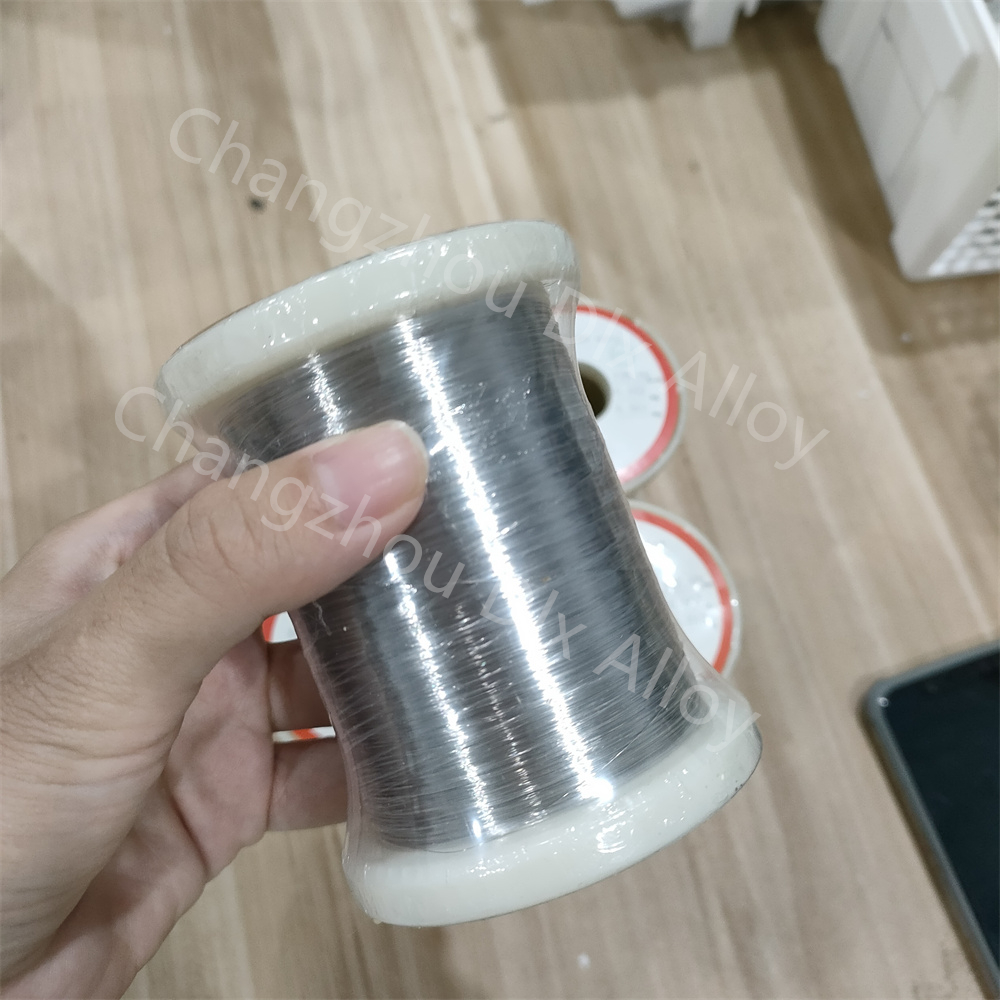

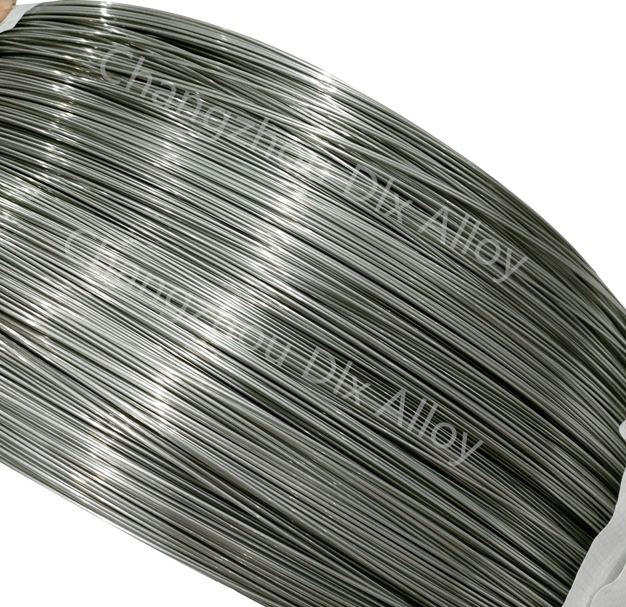

Hastelloy B3 Wire for Hydrochloric Acid-Resistant Pump Components
Our Hastelloy B3 wire is a total beast for hydrochloric acid-resistant pump components, built to handle the toughest chemical environments without breaking a sweat. This nickel-molybdenum alloy, with about 65% nickel, 28% molybdenum, and a touch of chromium, iron, and cobalt, is our go-to for applications where corrosion resistance and reliability are critical. Whether it’s springs, seals, or mesh reinforcements for pumps in chemical plants, this wire keeps your systems running strong.
What makes Hastelloy B3 wire stand out is its incredible ability to resist corrosion in hydrochloric acid, as well as other reducing acids like sulfuric and phosphoric. It’s perfect for pump components in chemical processing, where equipment needs to withstand harsh acidic conditions to ensure safe and efficient operations. This wire fights off pitting, crevice corrosion, and stress corrosion cracking, keeping your pumps leak-free with minimal maintenance.
This wire’s versatility is a major win. It’s stable up to 760°C, which is great for pump components in moderate-heat environments, like those in acid production or petrochemical facilities. Its low electrical conductivity (~1.5% IACS) is handy for applications where electrical isolation matters, and its high strength ensures it holds up under mechanical stress. From fertilizer plants to pharmaceutical production, Hastelloy B3 delivers.
We love how workable this wire is, even with its complex alloy makeup. You can coil, weave, or weld it into whatever your pump component design needs—think precision springs or durable seals. Need a specific diameter, strength, or finish? We can tailor it to fit your specs, ensuring smooth fabrication and keeping your project on track.
The chemical processing industry’s all about materials that are durable, efficient, and sustainable, and Hastelloy B3 wire checks every box. It’s recyclable, which is awesome for eco-friendly projects, and its long lifespan means less waste from replacements. With global demand for specialty chemicals, green fuels, and acid-based products growing, Hastelloy B3’s acid resistance is more critical than ever. Its low maintenance aligns with the trend toward cost-effective, sustainable operations.
Specification
item | HC-276 | C-22 | C-4 | B2 | B3 | N |
C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
Ni | rest | rest | rest | rest | ≤65 | rest |
Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
B | -- | -- | -- | -- | -- | ≤0.01 |
W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Shape | Size (mm) |
Wire | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Custom made |
Sheet/Plate | Custom made |
For more details, pls directly contact us.
Our Hastelloy B3 wire sets the standard because we’re all about quality, customization, and customer success. We offer a wide range of diameters, strengths, and finishes, with fast delivery for both small and large orders. Our team dives into your project, optimizing the wire for your pump components to ensure maximum corrosion resistance and performance in acidic environments. We keep pricing competitive, especially for bulk orders, without skimping on quality. Our sustainable production process uses recyclable materials, aligning with green industry trends. Plus, our hands-on support means you’re always covered—whether it’s technical guidance or a custom solution, we make it happen.
Comparison Parameters Table
Parameter | Hastelloy B3 Wire | Hastelloy B2 Wire | Stainless Steel 316 Wire | Monel 400 Wire |
|---|---|---|---|---|
Corrosion Resistance | Excellent (hydrochloric acid, acids) | Excellent, slightly less stable | Good, weaker in strong acids | Excellent, less effective in HCl |
Electrical Conductivity | Low (~1.5% IACS) | Low (~1.5% IACS) | Low (~2% IACS) | Moderate (~3-4% IACS) |
Thermal Stability | High (up to 760°C) | High (up to 700°C) | High (up to 870°C) | High (up to 550°C) |
Mechanical Strength | High, good ductility | High, slightly less ductile | Very high, less ductile | Good, high ductility |
Formability | Moderate, requires special handling | Moderate, harder to fabricate | Moderate, harder to form | Excellent, easy to shape and weave |
Cost | High, due to alloy complexity | High, similar to B3 | Moderate, lower than Hastelloy | High, lower than B3 |
Typical Applications | Pump components, acid reactor springs | Acid processing, chemical linings | Marine fittings, chemical components | Marine connectors, desalination mesh |
Durability | Long lifespan, excellent in acids | Long, slightly less in pitting | Long, varies in acidic environments | Very long, less in strong acids |
Compared to other materials, our Hastelloy B3 wire is a clear winner. Hastelloy B2 is great for acids but less stable during fabrication and prone to pitting. Stainless steel 316 is tough but struggles with strong acids like hydrochloric, unlike B3. Monel 400 is corrosion-resistant but lacks B3’s effectiveness in reducing acid environments. Our wire is the go-to for hydrochloric acid-resistant pump components.
We craft our Hastelloy B3 wire to meet strict standards like ISO 9001, ensuring quality you can trust every time. Whether you’re building springs for acid pumps or seals for chemical reactors, this wire’s ready to perform. Got a unique spec in mind? Let us know, and we’ll make it happen.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is Hastelloy B3 wire made of?
It’s a nickel-molybdenum alloy with about 65% nickel, 28% molybdenum, plus small amounts of chromium, iron, and cobalt for corrosion resistance.What are the main uses for Hastelloy B3 wire in pump components?
It’s used for springs, seals, and mesh reinforcements in pumps handling hydrochloric acid and other corrosive fluids.How does Hastelloy B3 wire perform in hydrochloric acid?
It’s a champ, resisting corrosion, pitting, and stress corrosion cracking in hydrochloric acid environments.Can Hastelloy B3 wire handle high temperatures?
Yep, it’s stable up to 760°C, suitable for pump components in moderate-heat chemical conditions.Is Hastelloy B3 wire cost-effective?
It’s pricier than stainless steel, but its durability in acidic environments makes it a smart long-term choice.How does Hastelloy B3 wire compare to Hastelloy B2 wire?
B3 offers better thermal stability and resistance to pitting, while B2 is slightly less stable during fabrication.Can Hastelloy B3 wire be customized?
Totally! We can adjust diameter, strength, or finish to meet your specific pump component needs.Is Hastelloy B3 wire environmentally friendly?
It’s recyclable, supporting green practices, and its long lifespan reduces waste from replacements.
