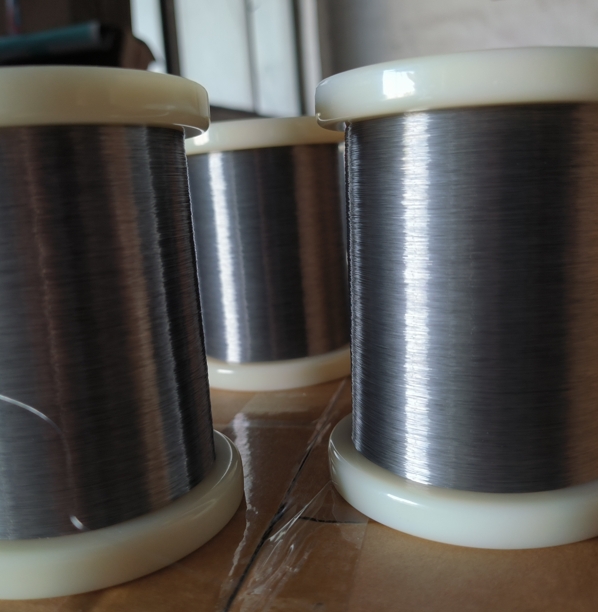

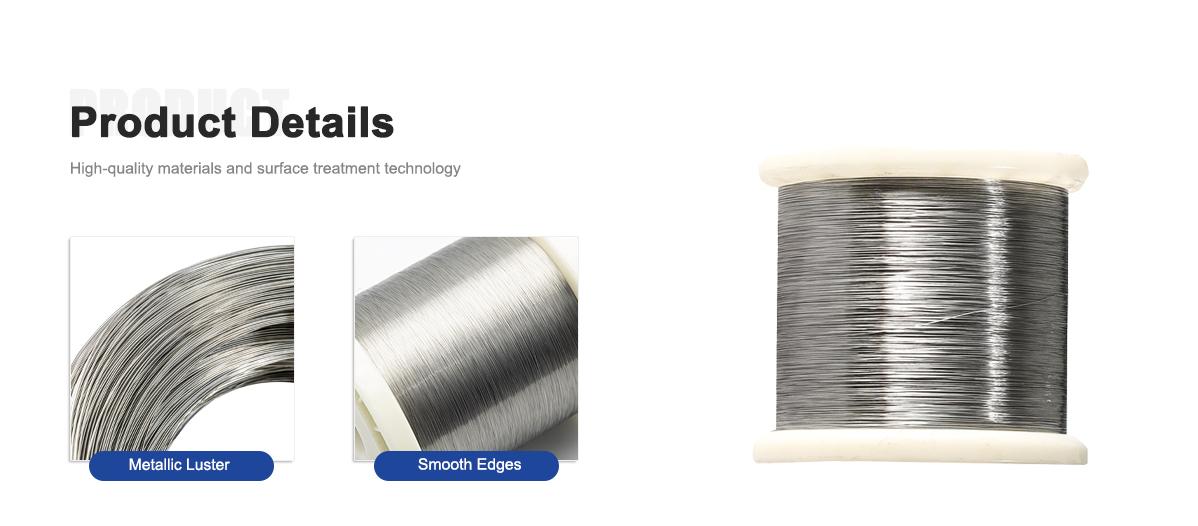

Hastelloy C276 Wire for Acidic Environment Cladding
Our Hastelloy C276 wire is a total rockstar for acidic environment cladding, built to handle the harshest chemical conditions without blinking. This nickel-molybdenum-chromium alloy, with about 57% nickel, 16% molybdenum, 16% chromium, plus a dash of tungsten and iron, is our go-to for applications where corrosion resistance is critical. Whether it’s cladding for chemical reactors, welding overlays for pipelines, or mesh reinforcements in acid-handling systems, this wire keeps your equipment protected and running smoothly.
What makes Hastelloy C276 wire stand out is its incredible ability to resist corrosion from tough acids like sulfuric, hydrochloric, and nitric, along with chlorides and alkalis. It’s perfect for cladding in acidic environments, where equipment needs to stay intact to ensure safe and efficient operations. This wire fights off pitting, crevice corrosion, and stress corrosion cracking, making your cladding layers tough as nails with minimal maintenance.
This wire’s versatility is a huge win. It’s stable up to 1093°C, which is awesome for cladding applications in high-heat chemical settings, like petrochemical refineries or acid production plants. Its low electrical conductivity (~1.5% IACS) is great for applications where electrical isolation matters, and its high strength ensures it holds up under mechanical stress. From pharmaceutical reactors to waste treatment systems, Hastelloy C276 delivers.
Comparison Parameters Table
Parameter | Hastelloy C276 Wire | Hastelloy C22 Wire | Stainless Steel 316 Wire | Monel 400 Wire |
|---|---|---|---|---|
Corrosion Resistance | Excellent (reducing acids, chlorides) | Excellent, better in oxidizing acids | Good, weaker in strong acids | Excellent, less in reducing acids |
Electrical Conductivity | Low (~1.5% IACS) | Low (~1.5% IACS) | Low (~2% IACS) | Moderate (~3-4% IACS) |
Thermal Stability | High (up to 1093°C) | High (up to 1038°C) | High (up to 870°C) | High (up to 550°C) |
Mechanical Strength | High, good ductility | High, slightly less ductile | Very high, less ductile | Good, high ductility |
Formability | Moderate, requires special handling | Moderate, requires special handling | Moderate, harder to form | Excellent, easy to shape and weave |
Cost | High, due to alloy complexity | High, similar to C276 | Moderate, lower than Hastelloy | High, lower than C276 |
Typical Applications | Acidic cladding, reactor mesh | Marine filtration, chemical linings | Marine fittings, chemical components | Marine connectors, desalination mesh |
Durability | Long lifespan, excellent in acids | Long, slightly less in pitting | Long, varies in acidic environments | Very long, less in strong acids |
Specification
item | HC-276 | C-22 | C-4 | B2 | B3 | N |
C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
Ni | rest | rest | rest | rest | ≤65 | rest |
Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
B | -- | -- | -- | -- | -- | ≤0.01 |
W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Shape | Size (mm) |
Wire | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Custom made |
Sheet/Plate | Custom made |
For more details, pls directly contact us.
We love how workable this wire is, even with its complex alloy makeup. You can weld, weave, or form it into whatever your cladding design needs—think seamless overlays or durable mesh reinforcements. Need a specific diameter, strength, or finish? We can tailor it to fit your specs, ensuring smooth fabrication and keeping your project on track.
The chemical processing industry’s all about materials that are tough, efficient, and sustainable, and Hastelloy C276 wire checks every box. It’s recyclable, which is great for eco-friendly projects, and its long lifespan means less waste from replacements. With global demand for specialty chemicals, green fuels, and acid-based products soaring, Hastelloy C276’s acid resistance is more critical than ever. Its low maintenance aligns with the trend toward cost-effective, sustainable operations.
Our Hastelloy C276 wire sets the standard because we’re all about quality, customization, and customer success. We offer a wide range of diameters, strengths, and finishes, with fast delivery for both small and large orders. Our team dives into your project, optimizing the wire for your acidic environment cladding to ensure maximum corrosion resistance and durability. We keep pricing competitive, especially for bulk orders, without cutting corners on quality. Our sustainable production process uses recyclable materials, aligning with green industry trends. Plus, our hands-on support means you’re always covered—whether it’s technical guidance or a custom solution, we make it happen.
Compared to other materials, our Hastelloy C276 wire is a standout. Hastelloy C22 is great for oxidizing acids but slightly less effective in reducing acids and pitting scenarios. Stainless steel 316 is tough but struggles with strong acids and chlorides, unlike C276. Monel 400 is corrosion-resistant but lacks C276’s high-temperature stability and acid resistance. Our wire is the go-to for acidic environment cladding.
We craft our Hastelloy C276 wire to meet strict standards like ISO 9001, ensuring quality you can trust every time. Whether you’re cladding chemical reactors or reinforcing pipelines, this wire’s ready to perform. Got a unique spec in mind? Let us know, and we’ll make it happen.
About Us:

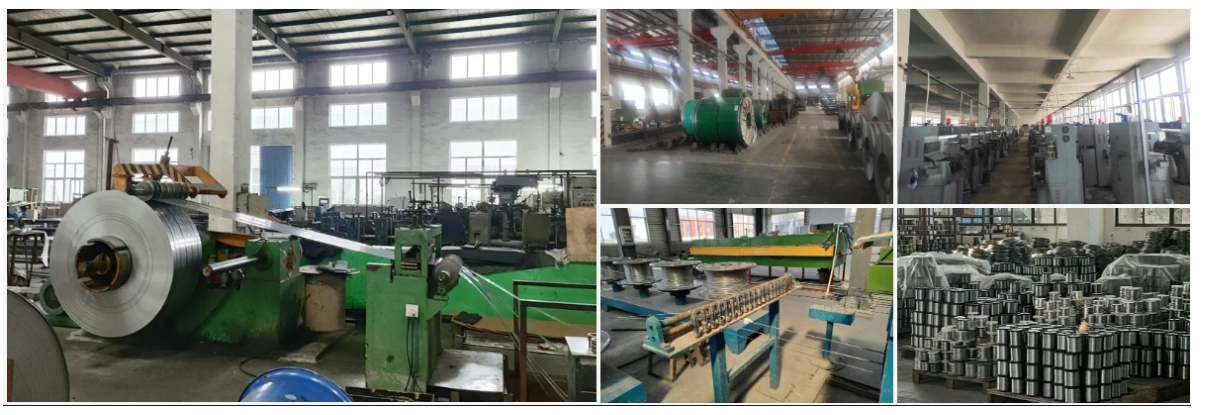

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships

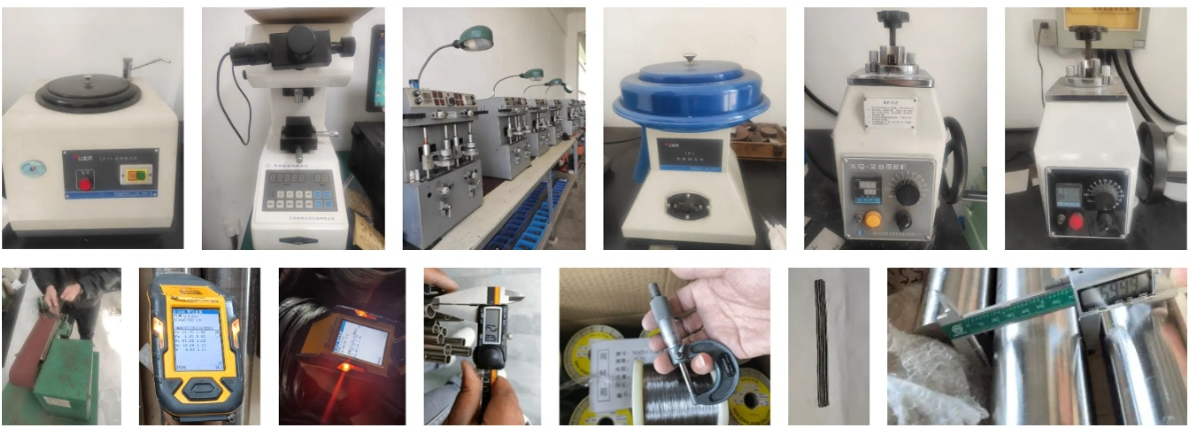

We support all kinds of testing:
FAQs:
What is Hastelloy C276 wire made of?
It’s a nickel-molybdenum-chromium alloy with about 57% nickel, 16% molybdenum, 16% chromium, plus tungsten and iron for corrosion resistance.What are the main uses for Hastelloy C276 wire in acidic environments?
It’s used for cladding, welding overlays, and mesh reinforcements in chemical reactors and pipelines exposed to acids.How does Hastelloy C276 wire perform in acidic conditions?
It’s a champ, resisting corrosion from sulfuric, hydrochloric, and nitric acids, plus chlorides and alkalis.Can Hastelloy C276 wire handle high temperatures?
Yep, it’s stable up to 1093°C, ideal for cladding in high-heat acidic environments.Is Hastelloy C276 wire cost-effective?
It’s pricier than stainless steel, but its durability in acidic settings makes it a smart long-term choice.How does Hastelloy C276 wire compare to Hastelloy C22 wire?
C276 is better against pitting and reducing acids, while C22 excels in oxidizing acid environments.Can Hastelloy C276 wire be customized?
Totally! We can adjust diameter, strength, or finish to meet your specific cladding needs.Is Hastelloy C276 wire environmentally friendly?
It’s recyclable, supporting green practices, and its long lifespan reduces waste from replacements.
