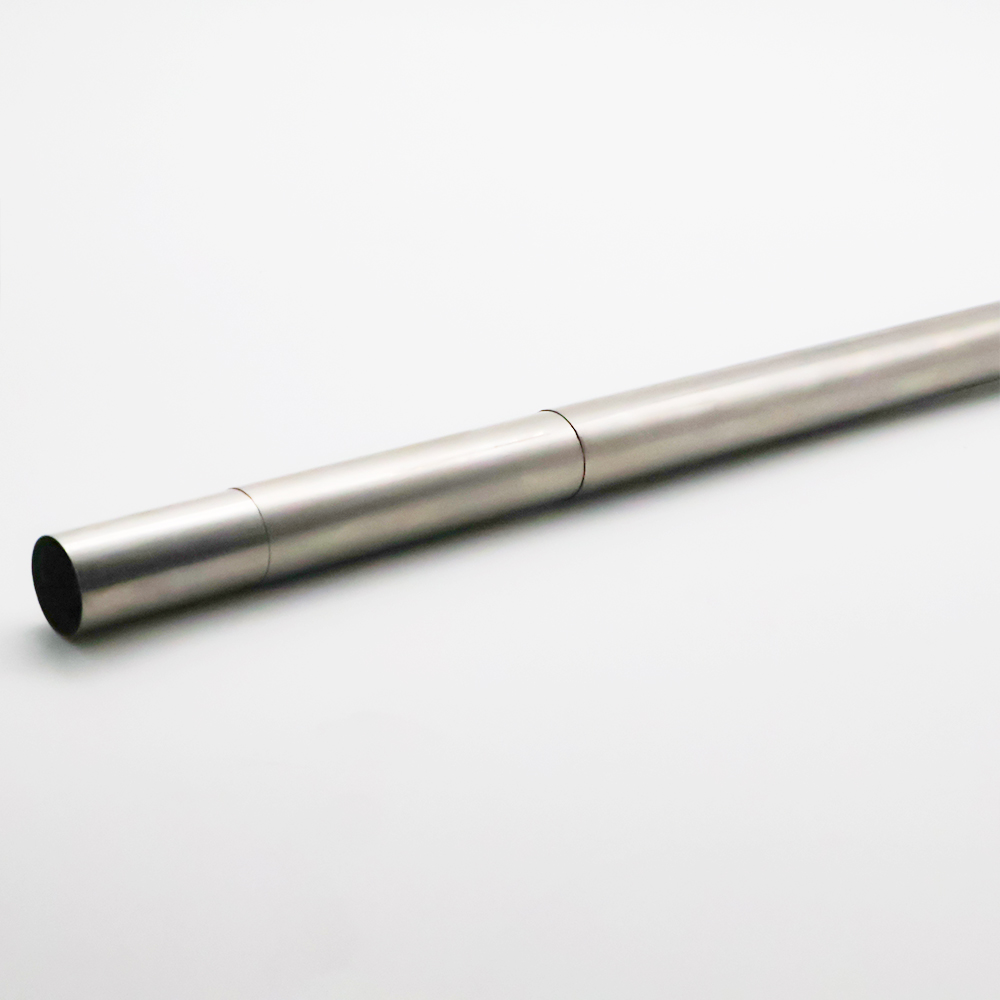

High-Strength Monel K500 Multilayer Tube for Marine Applications

Monel K500 multilayer tubes are a benchmark in marine engineering for their ability to combine outstanding corrosion resistance with exceptional mechanical strength. This is not just a variation of the Monel family — it’s a material specifically enhanced to deliver superior performance in some of the most challenging environments on earth: offshore platforms, naval vessels, subsea systems, and high-pressure marine piping networks.

For more details, pls directly contact us.
Monel K500 is a nickel-copper alloy that incorporates small but critical amounts of aluminum and titanium. These additions enable age-hardening, which significantly boosts tensile and yield strength while maintaining Monel’s renowned corrosion resistance. The result is a tube that not only survives seawater exposure but also handles high loads, high pressures, and dynamic stresses without deformation or premature wear.

When manufactured into a multilayer tube, Monel K500’s performance is amplified. The layered construction adds mechanical redundancy, pressure resistance, and improved fatigue life, making it an ideal choice for systems where failure is not an option.

Parameter:

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation
Monel K500	8.05 g/cm3	1288-1343℃	1100	790	20%

Monel 400	Bar / Rod	Forging	Pipe	Sheet / Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Monel K500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B864	AMS4676	ASTM B865	ASTM B564	ErNiCu-7

For more details, pls directly contact us.

Marine environments are brutal on metals. Constant exposure to saltwater, high humidity, biofouling organisms, and temperature swings can quickly degrade ordinary materials. Monel K500’s corrosion resistance is outstanding in these conditions, resisting not only general rust but also pitting, crevice corrosion, and stress-corrosion cracking.

The alloy’s high strength means it can be used in thinner wall sections without sacrificing performance, reducing overall system weight — a valuable benefit for naval and offshore projects where every kilogram matters. Its ability to retain toughness at sub-zero temperatures also makes it suitable for Arctic and deep-sea operations.

Performance in Marine Systems
Our Monel K500 multilayer tubes are used in a wide range of critical marine applications, including:

• High-pressure seawater piping in offshore oil and gas platforms

• Pump shafts and valve stems in shipboard systems

• Heat exchanger tubing in desalination plants

• Structural hydraulic lines in subsea equipment

In these environments, performance demands are unforgiving. Materials must handle fluctuating pressures, rapid temperature changes, and potential impacts from debris or operational loads. Monel K500 multilayer tubes meet these demands with proven reliability, often outperforming alternative alloys in service life and safety margins.

Manufacturing Process and Quality Control
We produce Monel K500 multilayer tubes using precision-controlled extrusion and cold-drawing processes. The multilayer structure is achieved through metallurgical bonding techniques that ensure perfect adhesion between layers without compromising the alloy’s properties. This structure allows for enhanced burst pressure ratings and additional protection against corrosion penetration.

Every production batch undergoes comprehensive testing, including tensile strength evaluation, hardness measurement, hydrostatic pressure testing, and non-destructive inspection methods like ultrasonic and eddy current scanning. Dimensional tolerances are maintained with high accuracy to ensure seamless installation in demanding marine systems.

Industry Trends Shaping Demand
The global marine industry is shifting toward more robust and longer-lasting materials. This is driven by several factors:

1. Extended service life goals – Reducing drydock time and maintenance costs.

2. Harsher operational environments – Deeper waters, colder climates, higher pressures.

3. Sustainability and lifecycle efficiency – Fewer replacements mean less material consumption and waste.

4. Safety regulations – Stricter compliance requirements demand proven material performance.

Monel K500 multilayer tubes align perfectly with these trends, offering a solution that is both high-performance and long-term cost-effective.

Our Competitive Advantages
We differentiate ourselves not just by supplying Monel K500 multilayer tubes, but by providing tailored engineering solutions for each project. Our capabilities include:

• Custom dimensions and wall thicknesses for unique system requirements

• Specialized multilayer configurations to optimize for pressure, corrosion, and fatigue performance

• Surface finishing and passivation to reduce fouling and improve flow efficiency

• Full traceability and compliance documentation to meet marine classification standards

• Technical support for design integration, welding, and maintenance best practices

Our in-house engineering team works directly with clients to understand system challenges and propose optimized solutions, often resulting in improved efficiency, reduced maintenance, and extended component life.

Comparison Table – Material Parameters

Property	Monel K500 Multilayer Tube	Monel 400 Tube	Stainless Steel 316 Tube
Main Composition	Ni-Cu-Al-Ti Alloy	Ni-Cu Alloy	Fe-Cr-Ni-Mo Alloy
Corrosion Resistance	Excellent in seawater and chemical environments	Excellent in seawater	Very good in seawater
Yield Strength (MPa)	~690	~240	~205
Hardness (HB)	~200	~110	~150
Max Operating Temperature	~480°C	~480°C	~870°C
Fatigue Resistance	Excellent	Good	Good
Magnetic Properties	Slightly magnetic after aging	Non-magnetic	Non-magnetic
Typical Applications	Marine shafts, pump parts, valves, multilayer tubing	Heat exchangers, piping	Marine hardware, piping

A client operating a large offshore platform faced recurring failures in seawater pump discharge piping made from standard alloys. Corrosion and fatigue cracking were leading to costly shutdowns. We proposed replacing the system with Monel K500 multilayer tubes. After installation, the platform reported zero failures over five years of continuous operation, despite high flow rates and aggressive seawater conditions. Maintenance costs dropped by 40%, and system reliability improved dramatically.

Installation and Maintenance Tips
While Monel K500 multilayer tubes are exceptionally durable, proper installation and maintenance practices further extend their service life:

• Avoid mixing with dissimilar metals in seawater systems to prevent galvanic corrosion.

• Use compatible welding fillers and procedures to maintain corrosion resistance.

• Support tubing properly to prevent vibration-induced fatigue.

• Conduct periodic inspections for scaling or fouling, particularly in warm, nutrient-rich waters.

Beyond Marine Applications
Although marine engineering is the primary domain for Monel K500 multilayer tubes, their combination of strength and corrosion resistance also benefits:

• Oil & gas – Sour gas systems, offshore risers, and chemical injection lines

• Defense – Submarine and naval vessel systems

• Aerospace – Hydraulic lines in aircraft carriers and seaborne aircraft

• Chemical processing – Equipment handling aggressive chlorides or mixed acids

Future Outlook
The demand for high-performance marine alloys is expected to grow as offshore infrastructure expands and deep-sea resource exploration advances. Monel K500 multilayer tubes are well-positioned to meet these challenges. Future innovations may include hybrid multilayer designs that integrate Monel K500 with other alloys for specific niche applications, as well as advanced coatings to further enhance anti-fouling properties.

Closing Perspective
High-strength Monel K500 multilayer tubes represent a strategic investment for marine applications where downtime is costly and safety is critical. Their ability to combine mechanical strength, corrosion resistance, and reliability under extreme conditions makes them a trusted choice for the most demanding environments.

By delivering not just material, but a complete engineered solution — from custom fabrication to technical integration — we help our clients achieve operational excellence, lower lifecycle costs, and secure long-term performance. With every project, our goal is simple: supply tubing that exceeds expectations, year after year, no matter how harsh the ocean’s challenge.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

• What is the primary composition of Monel K500?
  Nickel, copper, aluminum, and titanium.

• Does Monel K500 multilayer tube resist seawater corrosion?
  Yes.

• Is Monel K500 multilayer tube suitable for high-pressure marine systems?
  Yes.

• Can Monel K500 multilayer tube withstand high mechanical loads?
  Yes.

• Is Monel K500 multilayer tube magnetic?
  Slightly magnetic after age-hardening.

• Can Monel K500 multilayer tube be welded?
  Yes, with suitable procedures.

• Is Monel K500 multilayer tube available in custom sizes?
  Yes.

• Does Monel K500 multilayer tube maintain strength at sub-zero temperatures?
  Yes.
