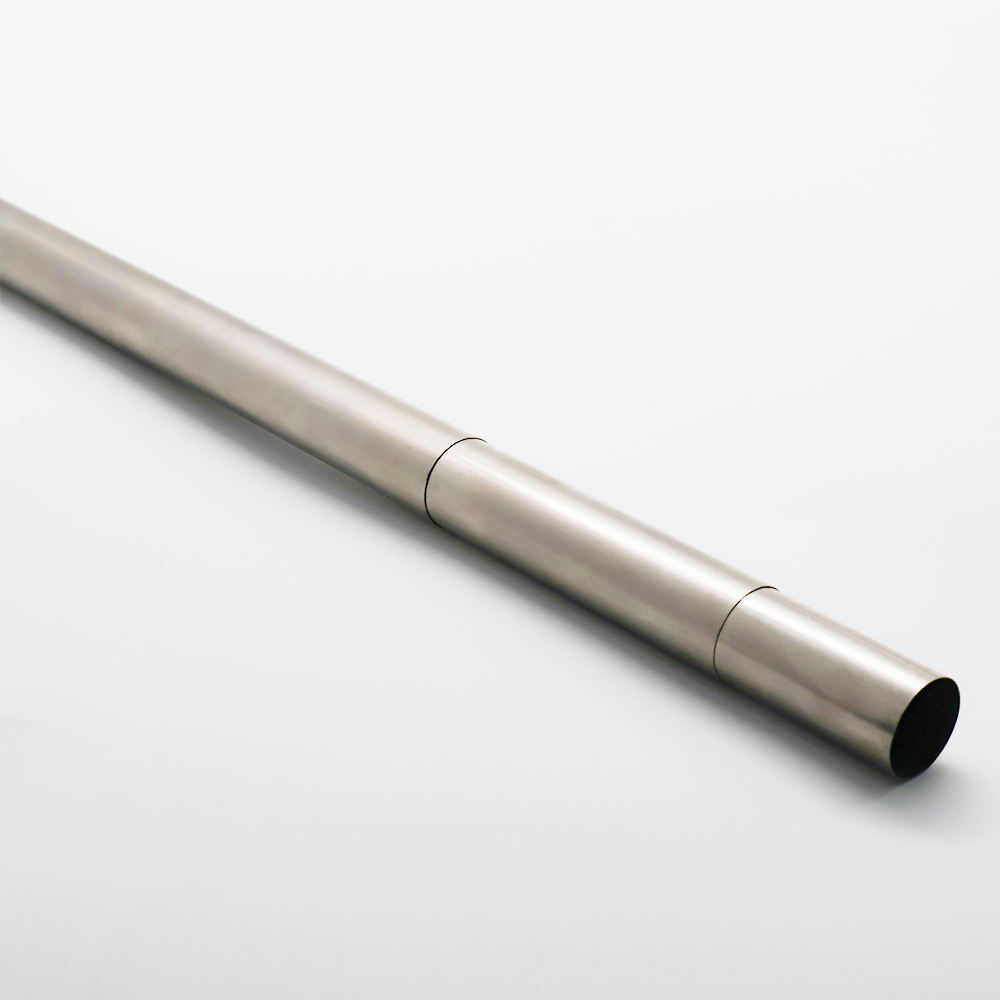

Monel K500 Multilayer Tube for Enhanced Strength in Harsh Environments

Monel K500 multilayer tubes are purpose-built for extreme operational demands. They are not simply another nickel-based alloy product; they represent the engineering answer to environments where high mechanical strength, exceptional corrosion resistance, and reliability under stress are mandatory. Whether it’s deep-sea exploration, offshore oil production, or aggressive chemical processing, Monel K500 multilayer tubes deliver a consistent performance edge.

For more details, pls directly contact us.
Monel K500 is a nickel-copper alloy strengthened through the addition of aluminum and titanium. These alloying elements enable precipitation hardening, which significantly increases strength and hardness without sacrificing corrosion resistance. This makes Monel K500 an upgraded variant compared to standard nickel-copper alloys, designed for environments where mechanical loads are intense and material degradation is unacceptable.

When transformed into a multilayer tube, this alloy gains another level of resilience. The multilayer design increases pressure tolerance, enhances fatigue resistance, and provides added insurance against corrosion penetration. This design is especially beneficial for applications where tubes face simultaneous chemical exposure, pressure cycles, and temperature fluctuations.

Parameter:

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation
Monel K500	8.05 g/cm3	1288-1343℃	1100	790	20%

Monel 400	Bar / Rod	Forging	Pipe	Sheet / Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Monel K500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B864	AMS4676	ASTM B865	ASTM B564	ErNiCu-7

For more details, pls directly contact us.

In offshore platforms, deep-sea equipment, and chemical reactors, equipment often operates in a corrosive soup of seawater, acids, alkalis, and other aggressive agents. Traditional alloys may suffer from pitting, crevice corrosion, or stress cracking over time. Monel K500’s metallurgical composition resists these degradation mechanisms, ensuring long-term performance stability.

Its high yield strength allows the material to bear significant mechanical loads, making it ideal for high-pressure fluid systems, rotating shafts, and structural components in subsea assemblies. Moreover, Monel K500 retains its toughness and ductility even at cryogenic temperatures, making it an all-season performer from Arctic waters to tropical seas.

Applications in Critical Industries
We supply Monel K500 multilayer tubes to a wide range of industries, each with its own extreme demands:

• Marine engineering – seawater piping, pump shafts, propeller shafts, and valve stems.

• Offshore oil & gas – risers, chemical injection lines, and seawater cooling systems.

• Chemical processing – heat exchanger tubes and reactor coils in acidic or alkaline conditions.

• Defense applications – naval vessel systems and subsea defense hardware.

• Cryogenic systems – equipment exposed to extremely low temperatures without material embrittlement.

These applications share a common requirement: the need for a material that can handle corrosion and mechanical stress simultaneously without failure.

Manufacturing Excellence
Our Monel K500 multilayer tubes start with carefully sourced raw material meeting strict composition tolerances. Precision extrusion and cold drawing form the base tube, which is then enhanced with metallurgically bonded layers to meet target performance specifications. The bonding process is engineered to avoid delamination and to maintain structural integrity under pressure and temperature extremes.

Dimensional tolerances are held to tight limits, ensuring proper fit in complex assemblies. Every tube undergoes mechanical testing, hydrostatic pressure testing, and non-destructive examination, including ultrasonic and eddy current inspection. These steps confirm the product’s readiness for high-stakes environments before it leaves our facility.

Industry Trends and Market Demand
Several macro trends are driving increased adoption of Monel K500 multilayer tubes:

1. Expansion of deepwater and ultra-deepwater oil projects – requiring materials with greater strength and corrosion resistance.

2. Tougher environmental compliance regulations – demanding longer service life and reduced maintenance waste.

3. Growth in renewable marine energy systems – such as offshore wind farms using corrosion-resistant alloys for structural and hydraulic components.

4. Shift toward lifecycle cost efficiency – operators are prioritizing materials that minimize downtime and total ownership cost over decades.

Our customers see Monel K500 not as an expense, but as an investment in operational stability.

Our Competitive Edge
Where we stand apart is in the integration of material supply with engineering support. Instead of offering a one-size-fits-all product, we tailor Monel K500 multilayer tubes to the operating environment:

• Custom wall thicknesses and diameters for system compatibility.

• Surface finishes to reduce fouling and improve flow performance.

• Special layer configurations for optimized fatigue resistance in cyclic load applications.

• Complete certification and traceability for marine and offshore classification requirements.

• Technical consultation from design phase to maintenance planning.

By working closely with our clients, we ensure that each installation achieves maximum service life and performance efficiency.

Case Example: Offshore Cooling System Upgrade
A major offshore platform operator approached us after repeated failures of their standard alloy seawater cooling tubes. The failures were due to a combination of high chloride levels, biofouling, and vibration-induced fatigue. We recommended replacing the tubes with custom-sized Monel K500 multilayer tubes, optimized with an anti-fouling surface finish and reinforced inner layers for added pressure resistance.

The result? Zero tube failures in over five years of continuous operation, with a 35% drop in maintenance costs and significantly reduced unplanned downtime.

Comparison Table – Material Parameters

Property	Monel K500 Multilayer Tube	Monel 400 Tube	Duplex Stainless Steel Tube
Main Composition	Ni-Cu-Al-Ti Alloy	Ni-Cu Alloy	Fe-Cr-Ni-Mo Alloy
Corrosion Resistance	Excellent in seawater, acids, and alkalis	Excellent in seawater	Very good in seawater and chlorides
Yield Strength (MPa)	~690	~240	~450
Hardness (HB)	~200	~110	~270
Max Operating Temperature	~480°C	~480°C	~315°C
Fatigue Resistance	Excellent	Good	Good
Magnetic Properties	Slightly magnetic after aging	Non-magnetic	Slightly magnetic
Typical Applications	Marine shafts, pump parts, valves, multilayer tubing	Heat exchangers, piping	Offshore piping, chemical plants

Even the strongest materials perform best when installed and maintained correctly:

• Use compatible filler metals when welding to maintain corrosion resistance.

• Avoid galvanic coupling with dissimilar metals in seawater exposure.

• Implement proper support to minimize vibration fatigue.

• Periodically inspect for scaling or marine growth, especially in warm waters.

Following these practices can further extend the service life of Monel K500 multilayer tubes.

Beyond Marine and Offshore
Although marine environments are a natural fit for Monel K500, its properties make it equally valuable in other harsh settings:

• Sour gas processing lines in petrochemical plants.

• Chemical reactors and mixing systems exposed to strong acids.

• Aerospace hydraulic lines in aircraft carriers and seaplanes.

• Mining operations with high-chloride process streams.

Its versatility ensures that investments in this material pay off across multiple industries.

Looking Ahead
The next decade will likely see increased deployment of Monel K500 multilayer tubes in hybrid material systems, combining them with advanced coatings or composite layers for even greater performance. As offshore drilling moves into deeper and harsher waters, and as marine renewable energy projects expand, demand for such tubes will rise.

We are prepared for this future with ongoing R&D, refining both material processing techniques and multilayer bonding technologies. Our focus is on delivering stronger, lighter, and more corrosion-resistant tubing without compromising quality or reliability.

Final Perspective
Monel K500 multilayer tubes are more than just components; they are critical enablers of safe, efficient, and reliable operation in environments where failure is not an option. With the right supplier — one that understands the alloy, the application, and the operational challenges — these tubes deliver exceptional lifecycle value.

Our mission is straightforward: provide the best Monel K500 multilayer tubing solutions on the market, tailored to the customer’s environment, supported by engineering expertise, and backed by a commitment to quality that ensures performance in even the harshest conditions. With every project we deliver, we strengthen our clients’ ability to operate with confidence, no matter how challenging the environment.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

• hat is the chemical composition of Monel K500?
  Nickel, copper, aluminum, and titanium.

• Does Monel K500 multilayer tube resist corrosion in seawater and chemicals?
  Yes.

• Is Monel K500 multilayer tube suitable for high-pressure systems?
  Yes.

• Can Monel K500 multilayer tube maintain strength at sub-zero temperatures?
  Yes.

• Is Monel K500 multilayer tube magnetic?
  Slightly magnetic after age-hardening.

• Can Monel K500 multilayer tube be welded?
  Yes, with proper techniques.

• Is Monel K500 multilayer tube customizable in size and wall thickness?
  Yes.

• Does Monel K500 multilayer tube have high fatigue resistance?
  Yes.
