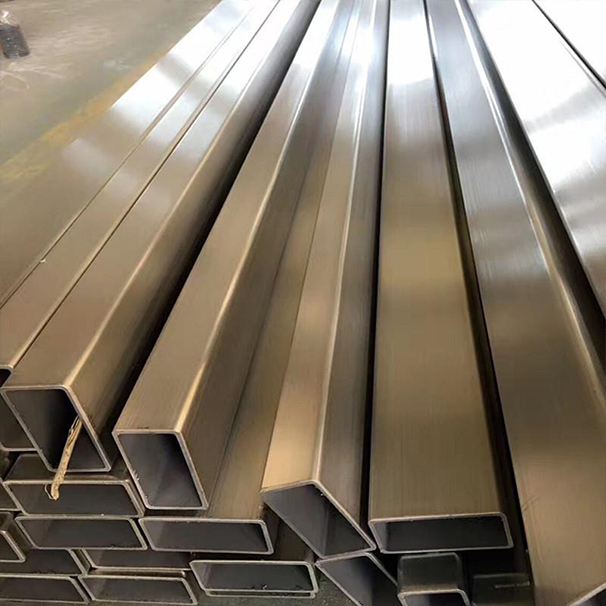

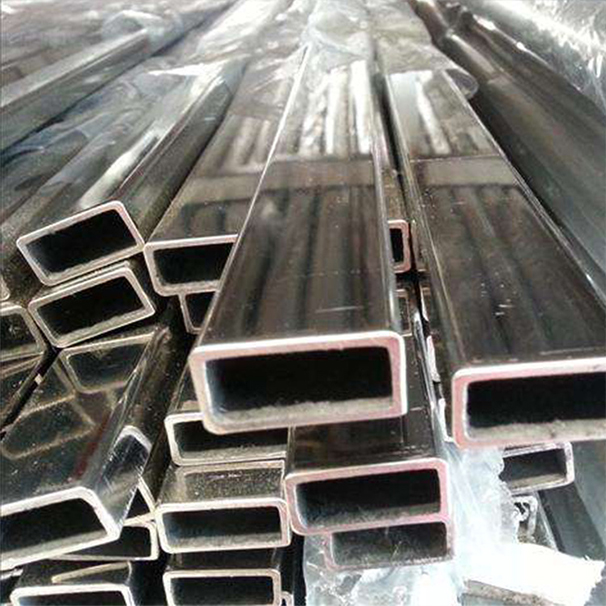

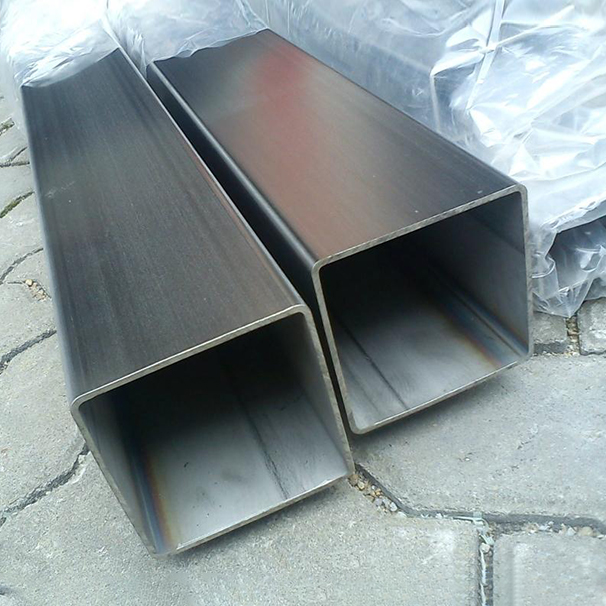

Monel 400 welded square tube for marine desalination system

Our Monel 400 welded square tube is a tough-as-nails solution for marine desalination systems, built to stand up to corrosive seawater without blinking. This nickel-copper alloy, with about 67% nickel, 30% copper, and a touch of iron and manganese, is our top pick for applications where corrosion resistance and structural reliability are critical. Whether it’s piping, supports, or fittings, this tube’s ready to keep your desalination system running smoothly.

What makes Monel 400 welded square tube so awesome is its ability to shrug off seawater corrosion. High-flow saltwater or stagnant coastal waters? No problem. It’s perfect for structural piping and supports in desalination plants, resisting pitting and stress corrosion cracking to keep your system humming. The welded square design offers a cost-effective option compared to seamless tubes, while its shape provides extra strength for structural applications.

This tube’s versatility is a big deal. It’s stable up to 550°C, which is plenty for desalination systems with moderate heat, like those in heat exchangers or pre-treatment units. Its moderate electrical conductivity (~3-4% IACS) is handy for systems with electrical integration, and its high ductility means it can handle mechanical stress without buckling. From coastal plants to offshore setups, Monel 400 delivers.

We love how easy this welded square tube is to work with. Its excellent formability lets you weld, cut, or shape it into whatever your desalination design needs—sturdy supports or intricate fittings. Need custom dimensions, wall thickness, or length? We can tailor it to fit your specs, making installation a breeze and keeping your project on schedule.

The desalination industry’s all about materials that are corrosion-resistant, efficient, and sustainable, and Monel 400 welded square tube nails it. It’s recyclable, which is great for eco-friendly projects, and its long lifespan means less waste from replacements. With global water scarcity fueling desalination growth—think new plants in coastal regions and offshore facilities—demand for durable materials like Monel 400 is skyrocketing. Its low maintenance and cost-effective welded design align with the trend toward sustainable, budget-friendly water solutions.

Our Monel 400 welded square tube sets the bar high because we’re obsessed with quality, customization, and customer success. We offer a wide range of dimensions, wall thicknesses, and lengths, with fast delivery for both small and large orders. Our team dives into your project, optimizing the tube for your desalination system to ensure maximum corrosion resistance and structural integrity. We keep pricing competitive, especially for bulk orders, without skimping on quality. Our sustainable production process uses recyclable materials, aligning with green industry trends. Plus, our hands-on support means you’re never left guessing—whether it’s technical advice or a custom solution, we make it happen.

Compared to other materials, our Monel 400 welded square tube is a clear winner. Monel K-500 is stronger but slightly less corrosion-resistant in seawater, making 400 the better pick for desalination piping. Stainless steel 316 is tough but struggles with chloride corrosion in saltwater, unlike Monel 400. Pure copper’s a conductivity champ but corrodes fast in marine environments. Our welded square tube is the go-to for reliable desalination system components.

Parameter:

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation
Monel K500	8.05 g/cm3	1288-1343℃	1100	790	20%

Monel 400	Bar / Rod	Forging	Pipe	Sheet / Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Monel K500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B864	AMS4676	ASTM B865	ASTM B564	ErNiCu-7

For more details, pls directly contact us.

We craft our Monel 400 welded square tube to meet strict standards like ISO 9001, ensuring quality you can trust every time. Whether you’re building structural supports or piping for a desalination plant, this tube’s ready to perform. Got a unique spec in mind? Let us know, and we’ll make it happen.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

1. What is Monel 400 welded square tube made of?
   It’s a nickel-copper alloy with about 67% nickel, 30% copper, plus small amounts of iron and manganese for corrosion resistance and strength.

2. What are the main uses for Monel 400 welded square tube in desalination?
   It’s used for structural piping, supports, and fittings in marine desalination systems handling corrosive seawater.

3. How does Monel 400 welded square tube perform in seawater?
   It’s a champ, resisting corrosion, pitting, and stress cracking in high-flow or stagnant saltwater conditions.

4. Can Monel 400 welded square tube handle high temperatures?
   Yep, it’s stable up to 550°C, perfect for desalination systems with moderate heat exposure.

5. Is Monel 400 welded square tube cost-effective?
   It’s pricier than stainless steel but more affordable than seamless tubes, and its durability in seawater makes it a smart choice.

6. How does Monel 400 welded square tube compare to Monel K-500 welded square tube?
   Monel 400 has better corrosion resistance in seawater, while K-500 offers higher strength but slightly less corrosion resistance.

7. Can Monel 400 welded square tube be customized?
   Totally! We can adjust dimensions, wall thickness, or length to meet your specific desalination system needs.

8. Is Monel 400 welded square tube environmentally friendly?
   It’s recyclable, supporting green practices, and its long lifespan reduces waste from replacements.
