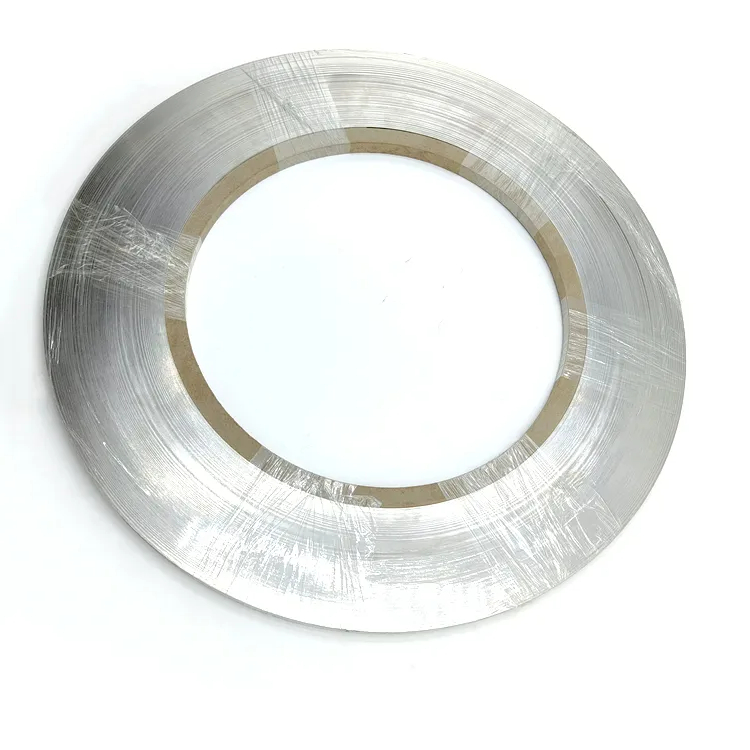

Hastelloy C-276 Strip for Chemical Reactor Heat Exchanger Fins
Our Hastelloy C-276 strip is a total game-changer for chemical reactor heat exchanger fins, built to handle the nastiest corrosive environments without breaking a sweat. This nickel-molybdenum-chromium alloy, with about 57% nickel, 16% molybdenum, 16% chromium, plus a touch of tungsten and iron, is our go-to for applications where corrosion resistance and durability are critical. Whether it’s heat exchanger fins, linings, or structural supports in chemical reactors, this strip keeps your systems running smooth and efficient.
What makes Hastelloy C-276 strip stand out is its incredible ability to resist corrosion from tough acids like sulfuric, hydrochloric, and nitric, as well as chlorides and alkalis. It’s perfect for heat exchanger fins in chemical reactors, fighting off pitting, crevice corrosion, and stress corrosion cracking to ensure long-lasting performance with minimal maintenance. This strip keeps your reactors efficient, delivering top-notch heat transfer in the harshest conditions.
For more details, pls directly contact us.
This strip’s versatility is a major win. It’s stable up to 1093°C, which is awesome for chemical reactors operating in high-heat environments, like those in petrochemical or pharmaceutical plants. Its low thermal conductivity (~10 W/m·K) is great for precise heat transfer control, and its high strength ensures it holds up under mechanical stress. From fertilizer production to acid manufacturing, Hastelloy C-276 delivers.
We love how adaptable this strip is, even with its complex alloy makeup. You can stamp, bend, or weld it into whatever your fin design needs—think thin, high-efficiency fins or sturdy linings. Need a specific width, thickness, or finish? We can tailor it to fit your specs, ensuring smooth fabrication and keeping your project on track.
Comparison Parameters Table
Parameter | Hastelloy C-276 Strip | Hastelloy C-22 Strip | Stainless Steel 316 Strip | Monel 400 Strip |
|---|---|---|---|---|
Corrosion Resistance | Excellent (reducing acids, chlorides) | Excellent, better in oxidizing acids | Good, weaker in strong acids | Excellent, less in reducing acids |
Thermal Conductivity | Low (~10 W/m·K) | Low (~10 W/m·K) | Low (~15 W/m·K) | Moderate (~22 W/m·K) |
Thermal Stability | High (up to 1093°C) | High (up to 1038°C) | High (up to 870°C) | Moderate (up to 550°C) |
Mechanical Strength | High, good ductility | High, slightly less ductile | Very high, less ductile | Good, high ductility |
Formability | Moderate, requires special handling | Moderate, requires special handling | Moderate, harder to form | Excellent, easy to shape and stamp |
Cost | High, due to alloy complexity | High, similar to C-276 | Moderate, lower than Hastelloy | High, lower than C-276 |
Typical Applications | Chemical reactor fins, linings | Marine linings, chemical seals | Marine fittings, chemical components | Marine supports, desalination parts |
Durability | Long lifespan, excellent in acids | Long, slightly less in pitting | Long, varies in acidic environments | Very long, less in strong acids |
The chemical processing industry’s all about materials that are tough, efficient, and sustainable, and Hastelloy C-276 strip checks every box. It’s recyclable, which is great for eco-friendly projects, and its long lifespan means less waste from replacements. With global demand for specialty chemicals, green fuels, and pharmaceuticals growing, Hastelloy C-276’s corrosion resistance is more critical than ever. Its low maintenance aligns with the trend toward cost-effective, sustainable operations.
Specification
item | HC-276 | C-22 | C-4 | B2 | B3 | N |
C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
Ni | rest | rest | rest | rest | ≤65 | rest |
Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
B | -- | -- | -- | -- | -- | ≤0.01 |
W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Shape | Size (mm) |
Wire | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Custom made |
Sheet/Plate | Custom made |
For more details, pls directly contact us.
Our Hastelloy C-276 strip sets the standard because we’re all about quality, customization, and customer success. We offer a wide range of widths, thicknesses, and finishes, with fast delivery for both small and large orders. Our team dives into your project, optimizing the strip for your chemical reactor heat exchanger fins to ensure maximum corrosion resistance and performance. We keep pricing competitive, especially for bulk orders, without skimping on quality. Our sustainable production process uses recyclable materials, aligning with green industry trends. Plus, our hands-on support means you’re always covered—whether it’s technical guidance or a custom solution, we make it happen.
Compared to other materials, our Hastelloy C-276 strip is a clear winner. Hastelloy C-22 is great for oxidizing acids but slightly less effective in reducing acids and pitting scenarios. Stainless steel 316 is tough but struggles with strong acids and chlorides, unlike C-276. Monel 400 is corrosion-resistant but lacks C-276’s high-temperature stability and acid resistance. Our strip is the go-to for chemical reactor heat exchanger fins.
We craft our Hastelloy C-276 strip to meet strict standards like ISO 9001, ensuring quality you can trust every time. Whether you’re building fins for petrochemical reactors or linings for acid processing, this strip’s ready to perform. Got a unique spec in mind? Let us know, and we’ll make it happen.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is Hastelloy C-276 strip made of?
It’s a nickel-molybdenum-chromium alloy with about 57% nickel, 16% molybdenum, 16% chromium, plus tungsten and iron for corrosion resistance.What are the main uses for Hastelloy C-276 strip in chemical reactors?
It’s used for heat exchanger fins, linings, and structural supports in chemical reactors handling corrosive fluids.How does Hastelloy C-276 strip perform in acidic environments?
It’s a beast, resisting corrosion from sulfuric, hydrochloric, and nitric acids, plus chlorides and alkalis.Can Hastelloy C-276 strip handle high temperatures?
Yep, it’s stable up to 1093°C, perfect for heat exchanger fins in high-heat chemical reactors.Is Hastelloy C-276 strip cost-effective?
It’s pricier than stainless steel, but its durability in harsh environments makes it a smart long-term choice.How does Hastelloy C-276 strip compare to Hastelloy C-22 strip?
C-276 excels in reducing acids and pitting resistance, while C-22 is better for oxidizing acid environments.Can Hastelloy C-276 strip be customized?
Totally! We can adjust width, thickness, or finish to meet your specific heat exchanger fin needs.Is Hastelloy C-276 strip environmentally friendly?
It’s recyclable, supporting green practices, and its long lifespan reduces waste from replacements.
